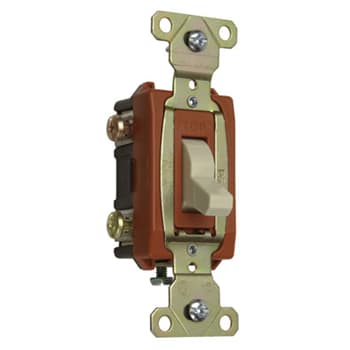

Pass & Seymour / Legrand - Pass & Seymour PS372030-I Canadian 3way Switch, Back & Side Wire, 20A 347V - Ivory
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007196269
Actuator - Toggle
Amperage - 20 Amp
Applications - For Residential and Commercial Use
Catalog Number - PS372030I
Packaging
1 ea
EAN
00785007196269
Part #
210853
Catalog #
PS372030-I
Commercial reference
PS372030-I
12-Digit UPC:
785007196269
Actuator:
Toggle
Amperage:
20 Amp
Applications:
For Residential and Commercial Use
Catalog Number:
PS372030I
Color:
Ivory
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS PS372030-I 20A 347VAC B&S WIRE CN 3W SW
Family Brand Name:
Pass & Seymour
Grade:
Commercial
Heights:
3.531 Inch
Number of Poles:
2 Pole
Size:
4.6x2.5x2.4
Sub Brand:
Pass & Seymour
Type:
Toggle
Voltage:
347 Volt
Widths:
1.320 in
SoneparProductId:
SKU_US_71826964
Canadian 3way Switch, Back & Side Wire, 20amp 347volt, Ivory Features: External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.; Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.; Cam controls fast \"make\" and positive \"break\" to minimize arcing.; Heavy-duty bumper pads for quiet operation.; High strength thermoplastic polycarbonate toggle.; Back body made of glass-reinforced nylon.; Locking support provides resistance to face and back body separation.; Oversized silver alloy contacts for long life and better heat dissipation.; Grounding terminal is standard.; Shallow design for ease of installation.; Strap nickel-plated steel with integral ground.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Eco-Benefit Information: RoHS Compliant
