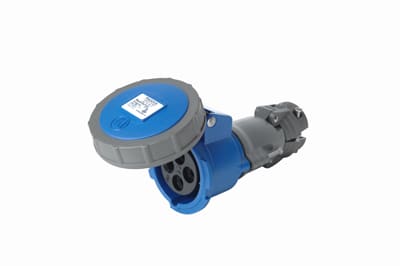

Pass & Seymour / Legrand - Pass & Seymour PS520C7-W Pin & Sleeve Connector, 4pole 5wire, 20A 3Y 277/480V
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007520064
Amperage - 20 Amp
Applications - Industrial
Buy American - Y
Catalog Number - PS520C7W
Packaging
1 ea
EAN
00785007520064
Part #
399663
Catalog #
PS520C7-W
Commercial reference
PS520C7-W
12-Digit UPC:
785007520064
Amperage:
20 Amp
Applications:
Industrial
Buy American:
Y
Catalog Number:
PS520C7W
Color:
Gray
Country of Origin:
USA
ERP_productname:
PASS PS520C7-W P/S CONN 5W 20A 3PH 277/480V WT
Family Brand Name:
Legrand
Heights:
3-1/2 Inch
Length:
6.7 Inch
Material:
Nylon
Number of Poles:
4 Pole
Number of Wires:
5 Wire
Size:
7.31x4.37x4
Sub Brand:
Pass & Seymour
Type:
Pin & Sleeve North American Watertight Connector
Voltage:
277 Volt
Widths:
3.4 in
SoneparProductId:
SKU_US_74041308
Four pole, Five wire, Pin and Sleeve Connector. 20 amp, 3Y, 277/480 volt. Features: Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.; Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.; Nylon construction for highimpact and corrosion resistance.; Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.; Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.; Natural-rubber grommets provide watertight protection at cable entry.; Combination-head screws for added convenience and quick installation.; Revolutionary, hinged cord grip for durable performance and ease of installation.; Cover with integral neoprene gasket provides watertight seal. - Certifications: cULus Listed
