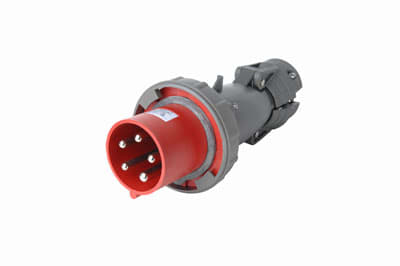

Pass & Seymour / Legrand - Pass & Seymour PS520P7-W Pin & Sleeve Plug, 4pole 5wire, 20A 277/480V
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007520071
Amperage - 20 Amp
Applications - Industrial
Buy American - Y
Catalog Number - PS520P7W
Packaging
1 ea
EAN
00785007520071
Part #
399662
Catalog #
PS520P7-W
Commercial reference
PS520P7-W
12-Digit UPC:
785007520071
Amperage:
20 Amp
Applications:
Industrial
Buy American:
Y
Catalog Number:
PS520P7W
Color:
Gray
Country of Origin:
USA
ERP_productname:
PASS PS520P7-W P/S PLUG 5W 20A 3PH 277/480V WT
Family Brand Name:
Legrand
Heights:
3.4 Inch
Length:
6 Inch
Material:
Nylon
Number of Poles:
4 Pole
Number of Wires:
5 Wire
Size:
6.5X3.9X3.7
Sub Brand:
Pass & Seymour
Type:
Plug Tail
Voltage:
277 Volt
Widths:
3.4 in
SoneparProductId:
SKU_US_73594270
Four pole, Five wire, Pin and Sleeve Plug. 20 amp, 277/480 volt. Features: Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.; Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.; Nylon construction for highimpact and corrosion resistance.; Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.; Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.; Natural-rubber grommets provide watertight protection at cable entry.; Combination-head screws for added convenience and quick installation.; Revolutionary, hinged cord grip for durable performance and ease of installation.; Cover with integral neoprene gasket provides watertight seal. - Certifications: cULus Listed
