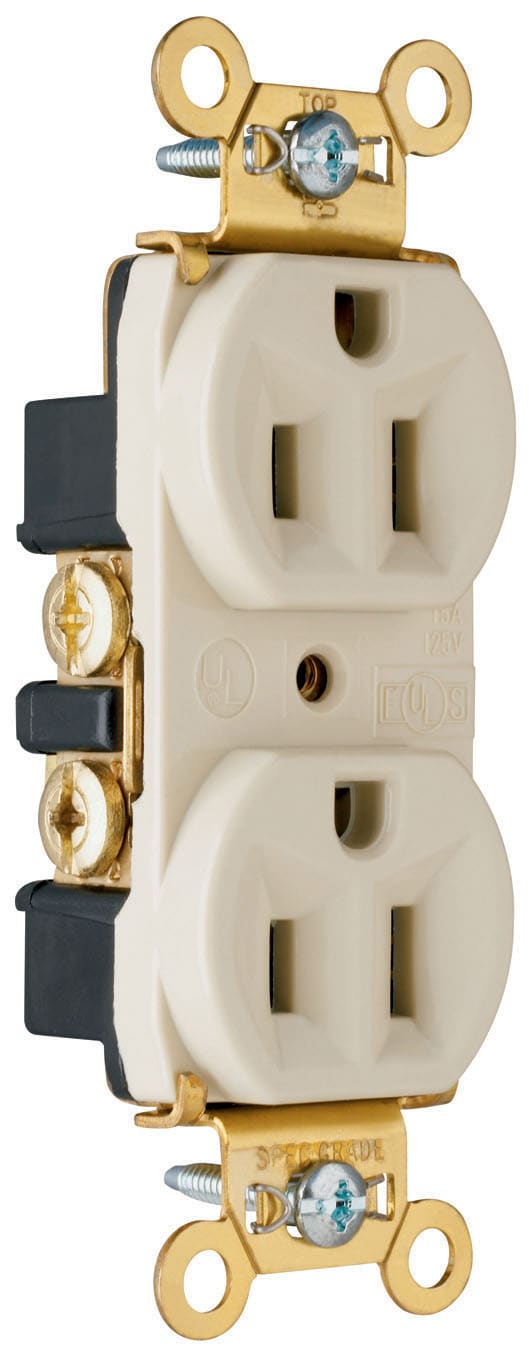

Pass & Seymour / Legrand - Pass & Seymour PS5262 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Brown Nylon Face PVC Body Heavy Duty Duplex Receptacle

Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 15A 125V Certifications: Federal Spec Listed; cULus Listed - Features: Heavy-duty, brass strap for added strength and ground conductivity.; Strap tabs wrap around face to prevent strap from separating from face and back body.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; High strength nylon face.; Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact
