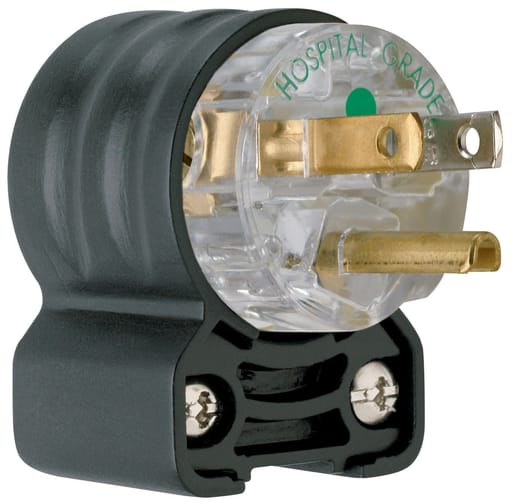

Pass & Seymour / Legrand - Pass & Seymour PS5266-HGAN 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15P Black and Clear Nylon Angled Polarized Straight Blade Plug

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour PS5266-HGAN 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15P Black and Clear Nylon Angled Polarized Straight Blade Plug

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007236767

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - PS5266HGAN

  • Color - Black

Packaging

  • 1 ea

EAN

00785007236767

Part #

355361

Catalog #

PS5266-HGAN

Commercial reference

PS5266-HGAN

12-Digit UPC:

785007236767

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

PS5266HGAN

Color:

Black

Conductor Size:

18-10 AWG

Country of Origin:

Mexico

Depths:

1.35 Inch

ERP_productname:

PASS PS5266-HGAN STR BLD ANGLE PLUG 3W 15A 125V HG

Family Brand Name:

Pass & Seymour

Heights:

2.13 Inch

Material:

Nylon

NEMA:

5-15P

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

2.2"

Sub Brand:

Pass & Seymour

Type:

Hospital Grade, Angled

Voltage:

125 Volt

Widths:

1.53 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_57874737

Straight Blade Plug 2-Pole 3-Wire 15A 125A Features: Angle plugs and adapters both allow for 4-position face rotation.; Tri-drive assembly and cord-grip screws are standard on all angle adapters.; Angle adapter (sold separately as catalog number EHU15AN) retrofits on all Pass & Seymour EHU-style Straight Blade plugs and connectors. Simply remove the straight handle body from the plug or connector face assembly and replace with the angle adapter.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed; Federal Spec Listed
