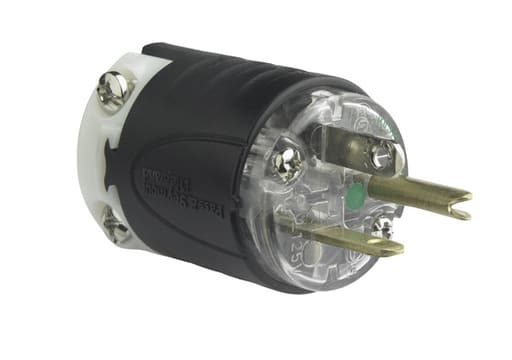

Pass & Seymour / Legrand - Pass & Seymour PS5366-XHG 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20P Black and Clear Nylon Polarized Straight Blade Plug

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007236798

  • Amperage - 20 Amp

  • Applications - Commercial Applications

  • Catalog Number - PS5366XHG

  • Color - Black

Packaging

  • 1 ea

EAN

00785007236798

Part #

213437

Catalog #

PS5366-XHG

Commercial reference

PS5366-XHG

12-Digit UPC:

785007236798

Amperage:

20 Amp

Applications:

Commercial Applications

Catalog Number:

PS5366XHG

Color:

Black

Conductor Size:

18-10 AWG

Country of Origin:

Mexico

Depths:

1.752 Inch

ERP_productname:

PASS PS5366-XHG STR BLD PLUG 3W 20A 125V HG

Family Brand Name:

Pass & Seymour

Grade:

Hospital

Heights:

1.516 Inch

Length:

1.752 Inch

Material:

Nylon

NEMA:

5-20P

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

3"

Sub Brand:

Pass & Seymour

Type:

Straight Blade

Voltage:

125 Volt

Widths:

1.358 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26750375

Straight Blade Plug 2-Pole 3-Wire 20A 125V Hospital Grade Features: Unit arrives completely ready-to-wire, cuts installation time significantly.; Nylon housing provides impact and chemical resistance.; Rugged two-piece cord grip provides more uniform cord retention.; Internal dust shield keeps terminals free of contaminants.; Tri-drive assembly screws are standard on Hospital Grade plugs and connectors (angle plugs not included).; All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.; Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.; Cord-grip screws recessed to protect installer against screwdriver head slippage.; For covering patents, see www.legrand.us/patents. - Certifications: Federal Spec Listed; cULus Listed
