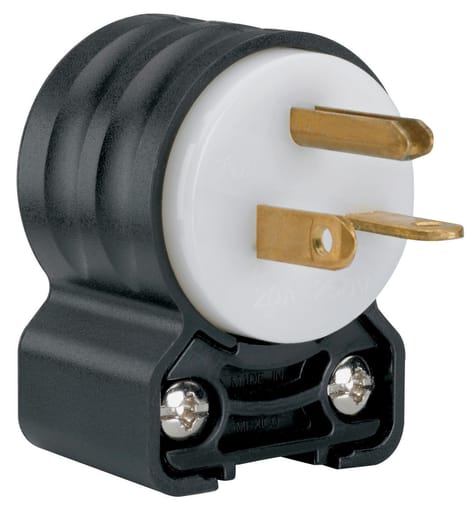

Pass & Seymour / Legrand - Pass & Seymour PS5466-SSAN Straight Blade Angle Plug, 2pole 3wire, 20A 250V

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007237061

  • Amperage - 20 Amp

  • Applications - Commercial

  • Catalog Number - PS5466SSAN

  • Color - Black

Packaging

  • 1 ea

EAN

00785007237061

Part #

135365

Catalog #

PS5466-SSAN

Commercial reference

PS5466-SSAN

12-Digit UPC:

785007237061

Amperage:

20 Amp

Applications:

Commercial

Catalog Number:

PS5466SSAN

Color:

Black

Conductor Size:

18-10 AWG

Country of Origin:

Mexico

Depths:

1.35 Inch

ERP_productname:

PASS PS5466-SSAN STR BLD ANGLE PLUG 3W 20A 250V

Family Brand Name:

Legrand

Grade:

Specification

Heights:

2.13 Inch

Material:

Nylon

NEMA:

6-20P

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

2.2"

Sub Brand:

Pass & Seymour

Type:

Straight Blade

Voltage:

250 Volt

Widths:

1.53 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_57787176

Straight Blade Plug 2pole 3wire 20amp 250volt Angle Features: Angle plugs and adapters both allow for 4-position face rotation.; Tri-drive assembly and cord-grip screws are standard on all angle adapters.; Angle adapter (sold separately as catalog number EHU15AN) retrofits on all Pass & Seymour EHU-style Straight Blade plugs and connectors. Simply remove the straight handle body from the plug or connector face assembly and replace with the angle adapter.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed; Federal Spec Listed
