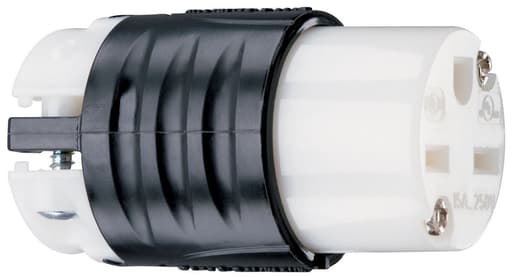

Pass & Seymour / Legrand - Pass & Seymour PS5669-X 15Amp 250V, Blade Connector 2Pole 3Wire, Black & White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007237177

  • Amperage - 15 Amp

  • Applications - Industrial

  • Catalog Number - PS5669X

  • Color - Black and White

Packaging

  • 1 ea

EAN

00785007237177

Part #

150542

Catalog #

PS5669-X

Commercial reference

PS5669-X

12-Digit UPC:

785007237177

Amperage:

15 Amp

Applications:

Industrial

Catalog Number:

PS5669X

Color:

Black and White

Conductor Size:

14-1/0 AWG

Country of Origin:

Mexico

Depths:

2.638 Inch

ERP_productname:

PASS PS5669-X 15A 250V STR BLD CONN

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

1.516 Inch

Length:

2.64 Inch

Material:

Nylon

NEMA:

6-15R

Number of Conductors:

3

Number of Poles:

2 Pole

Number of Ports:

2

Number of Wires:

3 Wire

Size:

2.64"

Sub Brand:

Pass & Seymour

Type:

Connector

Voltage:

250 Volt

Widths:

1.516 in

Wire Size:

14 AWG

SoneparProductId:

SKU_US_58104826

Straight Blade Connector 2pole 3wire 15amp 250v Certifications: Federal Spec Listed; cULus Listed - Features: Unit arrives completely ready-to-wire, cuts installation time significantly.; Nylon housing provides impact and chemical resistance.; Rugged two-piece cord grip provides more uniform cord retention.; Internal dust shield keeps terminals free of contaminants.; Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.; All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.; Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.; Cord-grip screws recessed to protect installer against screwdriver head slippage.; For covering patents, see www.legrand.us/patents.
