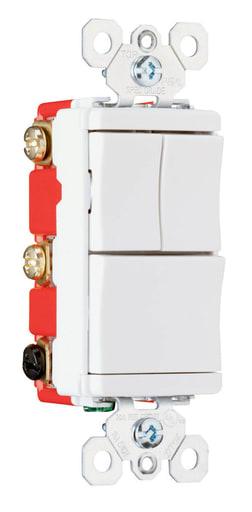

Pass & Seymour / Legrand - Pass & Seymour PS8111-20W Decorator Combo 3 Switches, White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007305913
Actuator - Up/Down Rocking Paddle
Amperage - 20 Amp
Applications - Commercial
Catalog Number - PS811120W
Packaging
1 ea
EAN
00785007305913
Part #
139173
Catalog #
PS8111-20W
Commercial reference
PS8111-20W
12-Digit UPC:
785007305913
Actuator:
Up/Down Rocking Paddle
Amperage:
20 Amp
Applications:
Commercial
Catalog Number:
PS811120W
Color:
White
Country of Origin:
China
ERP_productname:
PASS PS8111-20W COMBO DECO SWITCH WH
Family Brand Name:
Legrand
Finish:
Matte
Number of Poles:
1 Pole
Size:
1.29 L x 1.59 W x 3.812 H In
Sub Brand:
Pass & Seymour
Tc Connection:
Back and side wire
Type:
Spec Grade Combination Decorator Three Single Pole Switches
Voltage:
277 Volt
SoneparProductId:
SKU_US_71879292
Decorator Combo Switch, Ivory Features: Impact-resistant polycarb back body and frame.; Cushioned thermoplastic paddle assures smooth, quiet, long term operation.; Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.; Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.; Terminals made of high conductivity brass and serrated for maximum wire gripping.; Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.; Integral auto-ground clip for positive ground to metal boxes.; Tri-drive ground, terminal, and mounting screws.; All terminal screws backed out, ready-to-install.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed
