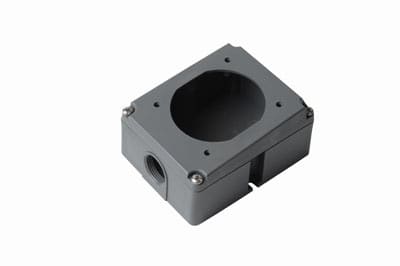

Pass & Seymour / Legrand - Pass & Seymour PSBBN202-W Pin & Sleeve Non-Metallic Back Box, 3/4" Hub

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007210088

  • Amperage - 20 Amp

  • Applications - Commercial

  • Buy American - Y

  • Catalog Number - PSBBN202W

Packaging

  • 1 ea

EAN

00785007210088

Part #

270526

Catalog #

PSBBN202-W

Commercial reference

PSBBN202-W

12-Digit UPC:

785007210088

Amperage:

20 Amp

Applications:

Commercial

Buy American:

Y

Catalog Number:

PSBBN202W

Color:

Black

Conductor Size:

2 AWG

Country of Origin:

USA

Depths:

2.38 Inch

ERP_productname:

PASS PSBBN202-W 20A 4/5 WIRE NON-MET BBOX 3/4 KO

Family Brand Name:

Legrand

Heights:

4.81 Inch

Length:

4.81 Inch

Material:

Thermoplastic

Number of Poles:

4 Pole

Number of Wires:

4 Wire

Size:

5"

Sub Brand:

Pass & Seymour

Type:

Pin & Sleeve Back Box

Voltage:

277 Volt

Widths:

3.78 in

Wire Size:

2 AWG

SoneparProductId:

SKU_US_58584897

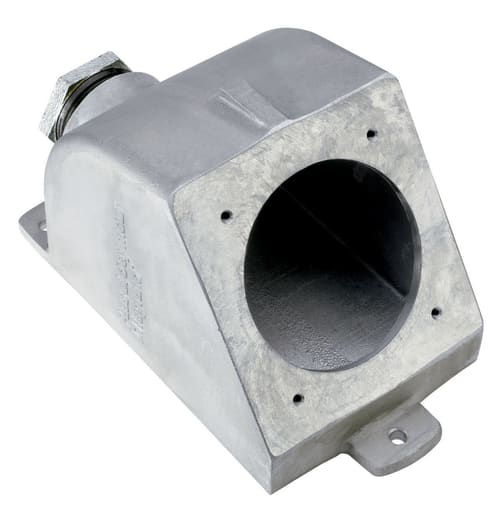

Metallic Back Box with 1 1/2\'\' Hub Die Cast, 16 amp. Features: Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.; Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.; Nylon construction for highimpact and corrosion resistance.; Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.; Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.; Natural-rubber grommets provide watertight protection at cable entry.; Combination-head screws for added convenience and quick installation.; Revolutionary, hinged cord grip for durable performance and ease of installation.; Cover with integral neoprene gasket provides watertight seal.
