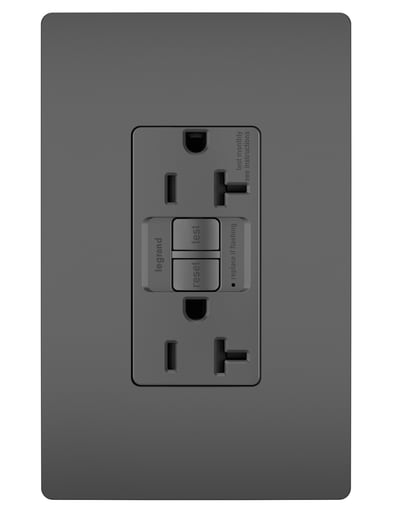

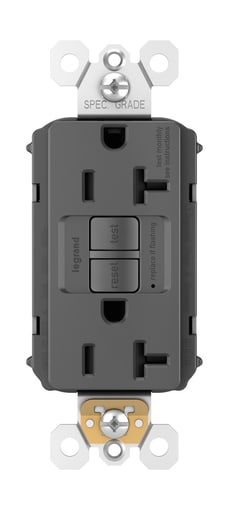

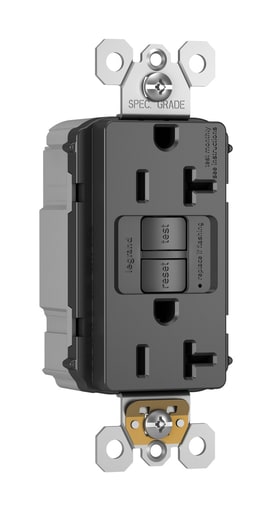

Pass & Seymour / Legrand - Pass & Seymour PT2097-BK 20A 125V Plugtail Self-Test GFCI Duplex Receptacle - Black

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007048186

  • Actuator - Control Circuit

  • Amperage - 20 Amp

  • Applications - For Commercial, Residential Applications

  • Catalog Number - PT2097BK

Packaging

  • 1 ea

EAN

00785007048186

Part #

114197

Catalog #

PT2097-BK

Commercial reference

PT2097-BK

12-Digit UPC:

785007048186

Actuator:

Control Circuit

Amperage:

20 Amp

Applications:

For Commercial, Residential Applications

Catalog Number:

PT2097BK

Color:

Black

Country of Origin:

China

Depths:

1.2 Inch

ERP_productname:

PASS PT2097-BK SELF TEST PLUGTAIL GFCI RECEP 20A BK

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Poles:

2 Pole

Sub Brand:

PlugTail®

Tc Connection:

Built-in Connector

Trip Type:

.025 Second Nominal

Type:

Self-Test

Voltage:

125 Volt

Widths:

1.72 in

SoneparProductId:

SKU_US_52192800

The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail information, visit our PlugTail Headquarters. Certifications: cULus Listed - Features: Conducts an automatic test every three seconds, ensuring it.s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven; SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected; Faster, more reliable installation; No exposed terminals create a finger-safe application before, during, and after installation; Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector; GFCI works with the existing 3-wire PlugTail connectors creating a non-feed-through application for facility; Zinc-plated steel mounting strap
