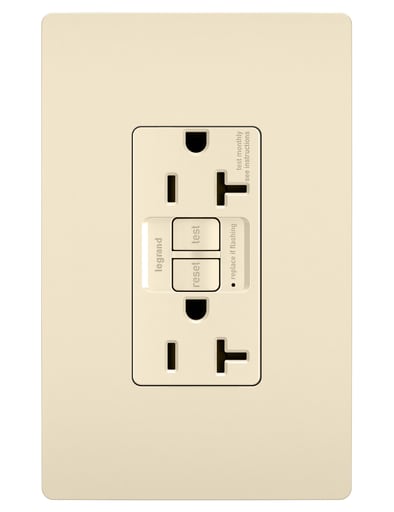

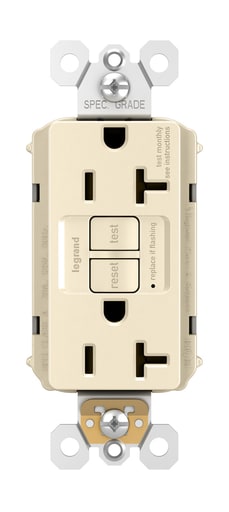

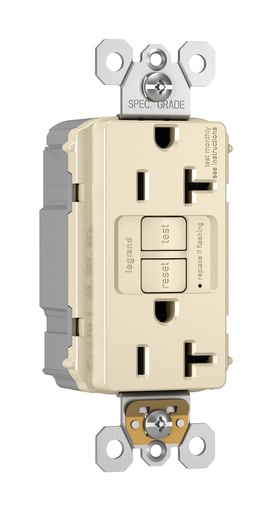

Pass & Seymour / Legrand - Pass & Seymour PT2097-LA 20A 125V Plugtail Self-Test GFCI Duplex Receptacle - Light Almond

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007048100

  • Actuator - Control Circuit

  • Amperage - 20 Amp

  • Applications - For Commercial, Residential Applications

  • Catalog Number - PT2097LA

Packaging

  • 1 ea

EAN

00785007048100

Part #

163961

Catalog #

PT2097-LA

Commercial reference

PT2097-LA

12-Digit UPC:

785007048100

Actuator:

Control Circuit

Amperage:

20 Amp

Applications:

For Commercial, Residential Applications

Catalog Number:

PT2097LA

Color:

Almond

Country of Origin:

China

Depths:

1.2 Inch

ERP_productname:

PASS PT2097-LA SELF TEST PLUGTAIL GFCI RECEP 20A LA

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Specification

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Poles:

2 Pole

Sub Brand:

PlugTail®

Tc Connection:

Built-in Connector

Trip Type:

.025 Second Nominal

Type:

Self-Test

Voltage:

125 Volt

Widths:

1.72 in

SoneparProductId:

SKU_US_52363145

The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail information, visit our PlugTail Headquarters. Features: Conducts an automatic test every three seconds, ensuring it.s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven; SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected; Faster, more reliable installation; No exposed terminals create a finger-safe application before, during, and after installation; Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector; GFCI works with the existing 3-wire PlugTail connectors creating a non-feed-through application for facility; Zinc-plated steel mounting strap - Certifications: cULus Listed
