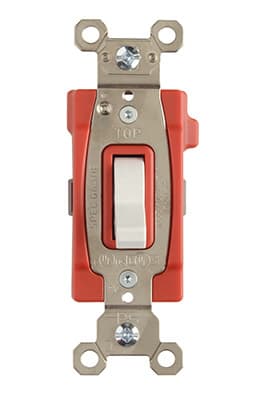

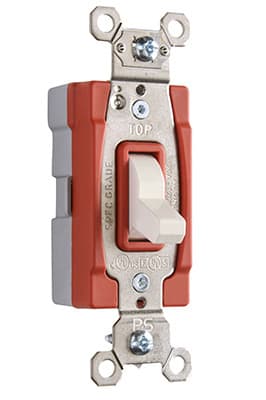

Pass & Seymour / Legrand - Pass & Seymour PT20AC3-W PlugTail™ 3Way Toggle Switch, 20A 120/277V - White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007108248
Amperage - 20 Amp
Applications - Commercial
Catalog Number - PT20AC3W
Color - White
Packaging
1 ea
EAN
00785007108248
Part #
218811
Catalog #
PT20AC3-W
Commercial reference
PT20AC3-W
12-Digit UPC:
785007108248
Amperage:
20 Amp
Applications:
Commercial
Catalog Number:
PT20AC3W
Color:
White
Country of Origin:
Mexico
Depths:
1.073 Inch
ERP_productname:
PASS PT20AC3-W PT 20A 120/277V 3W SW WH
Family Brand Name:
Legrand
Finish:
Matte
Grade:
Specification
Heights:
3.281 Inch
Number of Poles:
3 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Non-Reversing
Voltage:
120 Volt
Wattage:
3 Watt
Widths:
1.32 in
SoneparProductId:
SKU_US_27185394
PlugTail information, visit our PlugTail Headquarters. Features: One-piece toggle molded from chemical-, impact-, and heat-resistant thermoplastic.; Impact- and chemical- resistant cover.; Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.; One-piece nickel-plated mounting strap for superior corrosion resistance.; Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.; Auto-ground clip assures positive ground.; Shallow design for easier installation.; Heavy-duty bumpers for quiet, smooth operation.; No exposed terminals create a finger-safe application before, during, and after installation.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed
