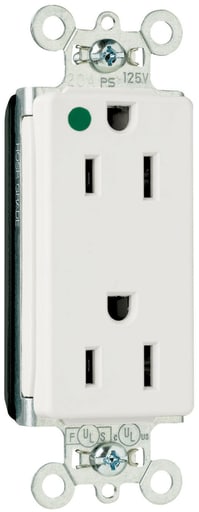

Pass & Seymour / Legrand - Pass & Seymour PT26262-HGW PlugTail™ Decorator Hospital Grade Duplex Receptacle, 15A 125V - White

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour PT26262-HGW PlugTail™ Decorator Hospital Grade Duplex Receptacle, 15A 125V - White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007309690

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - PT26262HGW

  • Color - White

Packaging

  • 1 ea

EAN

00785007309690

Part #

114016

Catalog #

PT26262-HGW

Commercial reference

PT26262-HGW

12-Digit UPC:

785007309690

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

PT26262HGW

Color:

White

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

5/8 Inch

ERP_productname:

PASS PT26262-HGW PT DUP DECO HG 15A/125V WH

Family Brand Name:

Pass & Seymour

Grade:

Hospital

Heights:

2-3/4 Inch

Material:

Thermoplastic

Mounting Type:

Wall

NEMA:

5-15R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

4.28x1.25x1.81

Sub Brand:

PlugTail®

Type:

Decorator

Voltage:

125 Volt

Widths:

1.5 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_71899908

PlugTail® Decorator Hospital Grade Duplex Receptacle 15 A 125 V WhiteFor detailed PlugTail® information, visit our PlugTail® Headquarters. Features: .036 inch thick, brass, triple-wipe power contacts for lasting retention.; Plated steel wrap strap design for maximum durability and corrosion resistance.; No exposed terminals create a finger safe application before, during, and after installation.; Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.; Crimped and welded contacts.; Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.; Large brass contacts snugly terminate on device blade terminals.; Pre-stripped connector leads fasten to conductors, easier than standard pigtails.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed
