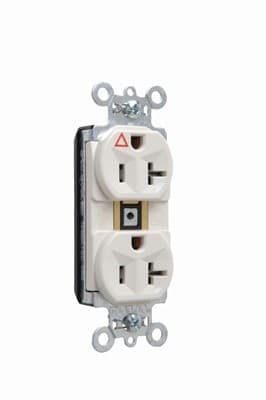

Pass & Seymour / Legrand - Pass & Seymour PTIG5362-LA PlugTail™ Isolated Ground Spec Grade Duplex Receptacle, 20A 125V - Light Almond

PlugTail® Isolated Ground Spec Grade Duplex Receptacle 20 A 125 V Orangev Features: .036 inch thick, brass, triple-wipe power contacts for lasting retention.; Plated steel wrap strap design for maximum durability and corrosion resistance.; No exposed terminals create a finger safe application before, during, and after installation.; Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.; Crimped and welded contacts.; Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.; Large brass contacts snugly terminate on device blade terminals.; Pre-stripped connector leads fasten to conductors, easier than standard pigtails.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact; PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only - Certifications: cULus Listed
