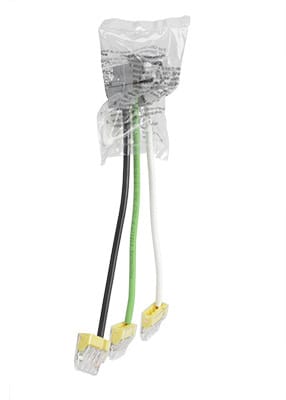

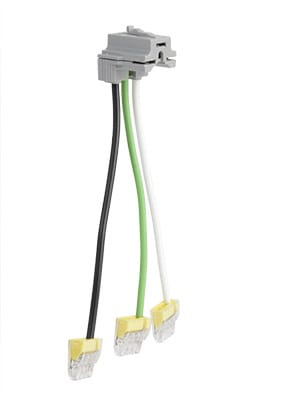

Pass & Seymour / Legrand - Pass & Seymour PTRA6-STRBP PlugTail™ Connector, Right Angle w/ WAGO Connector 6" Stranded
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007278255
Applications - For Commercial Use
Catalog Number - PTRA6STRBP
Color - Gray
Conductor Size - 12 AWG
Packaging
1 ea
EAN
00785007278255
Part #
153702
Catalog #
PTRA6-STRBP
Commercial reference
PTRA6-STRBP
12-Digit UPC:
785007278255
Applications:
For Commercial Use
Catalog Number:
PTRA6STRBP
Color:
Gray
Conductor Size:
12 AWG
Country of Origin:
Mexico
ERP_productname:
PASS PTRA6-STRBP PT 90 DEG CONNECTOR STR WIRE WAGO
Family Brand Name:
Pass & Seymour
Finish:
Matte
Length:
6 Inch
Material:
Polycarbonate
Mounting Type:
Device, Wall
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
7-1/2 in
Sub Brand:
Pass & Seymour
Type:
Right Angle
Wire Size:
12 AWG
SoneparProductId:
SKU_US_27185803
PlugTail® Connectors Right Angle with WAGO Connector Stranded 6""For detailed PlugTail® information, visit our PlugTail® Headquarters. Features: Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.; Plated steel wrap strap design for maximum durability and corrosion resistance.; Pre-stripped connector leads fasten to conductors, easier than standard pigtails.; Available in any wire length up to 25 inches, use Configurable Solutions to order.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact; PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, stranded, for use with PlugTail Receptacles only - Certifications: cULus Listed
