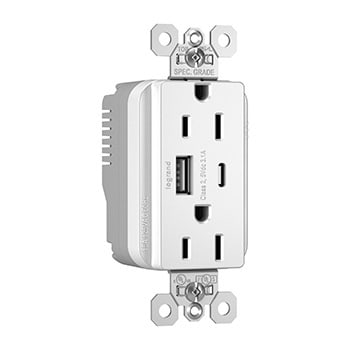

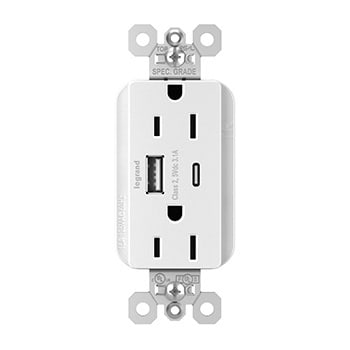

Pass & Seymour / Legrand - Pass & Seymour PTTR15ACUSBW 15A USB Commercial Specification Grade Charging Receptacle - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007113242

  • Amperage - 15 Amp

  • Catalog Number - PTTR15ACUSBW

  • Color - White

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00785007113242

Part #

418033

Catalog #

PTTR15ACUSBW

Commercial reference

PTTR15ACUSBW

12-Digit UPC:

785007113242

Amperage:

15 Amp

Catalog Number:

PTTR15ACUSBW

Color:

White

Country of Origin:

China

Depths:

1.45 Inch

ERP_productname:

PASS PTTR15ACUSBW PLUGTAIL 15A HYBRID AC USB DUPLEX W

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Specification

Heights:

2.677 Inch

Material:

Thermoplastic

NEMA:

5-15R

Sub Brand:

PlugTail®

Type:

Commercial, Non-Reversing

Voltage:

125 Volt

Widths:

1.693 in

SoneparProductId:

SKU_US_52021900

PlugTail® Commercial Specification Grade USB Charging Receptacles provide the convenience of mobile charging without the need for a bulky AC adapter. This device is a perfect match for the constant needs of todays mobile environment and is rugged enough to withstand hard-use commercial applications. It comes equipped with two UL Fed Spec AC receptacles and two USB charging ports for mobile devices one Type-A port and one Type-C port for newer products. An efficient, 15.5W power supply provides Ale power needed for charging mobile phones and tablets. The PlugTail® termination provides a more productive, secure, and safer installation and allows you to connect with the future of wiring device innovations. For detailed PlugTail® information, visit our PlugTail® Headquarters. Features: AC receptacles are tamper resistant as standard : patented shutter system prevents improper insertion of foreign objects; Plated steel wrap strap design for maximum durability and corrosion resistance.; Triple-wipe, brass line contacts for 15A commercial applications; Multiple color options available; Zinc-plated steel for corrosion resistance; 5Vdc Type-C USB port to charge USB Type-C compatible mobile devices; Stainless steel auto-ground clips assure positive ground; Available in 15 & 20A, Specification Grade and Hospital Grade configurations; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; Federal Spec Listed; UL Listed
