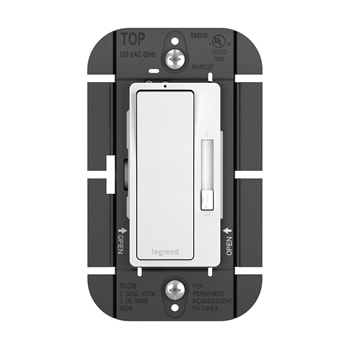

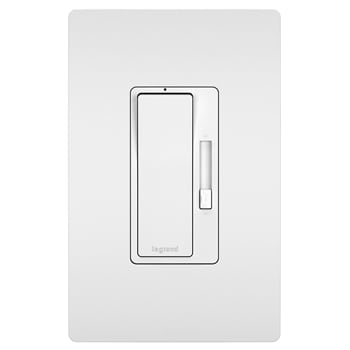

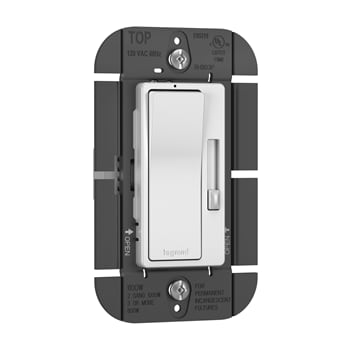

Pass & Seymour / Legrand - Pass & Seymour RH1103PW Radiant Incandescent Single Pole/3-Way Dimmer, 1100W 120V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007053395

  • Actuator - Paddle switch with Slider

  • Amperage - 15 Amp

  • Applications - Residential

  • Catalog Number - RH1103PW

Packaging

  • 1 ea

EAN

00785007053395

Part #

264928

Catalog #

RH1103-PW

Commercial reference

RH1103-PW

12-Digit UPC:

785007053395

Actuator:

Paddle switch with Slider

Amperage:

15 Amp

Applications:

Residential

Catalog Number:

RH1103PW

Color:

White

Country of Origin:

China

Depths:

1-1/4 Inch

ERP_productname:

PASS RH1103-PW RADIANT INCAN SP/3W 1100W WH

Enclosure:

Thermoplastic

Family Brand Name:

Pass & Seymour

Heights:

4-1/4 Inch

Material:

Thermoplastic

Mounting Type:

Box

Number of Gangs:

1 Gang

Number of Poles:

1 Pole

Sub Brand:

radiant

Tc Connection:

Screw Terminals

Type:

1-Pole

Voltage:

120 Volt

Wattage:

1100 Watt

Widths:

2.5 in

SoneparProductId:

SKU_US_58425353

The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.Upgrading your standard switch to this dimmer will save energy and extend bulb life by reducing the amount of electricity required to power the lights. radiant® Screwless Wall Plate not included. Features: Part of the all-new radiant™ collection.; Convenient operation.combines ON/OFF paddle switch with separate slider for dimming control.; White LED glows when dimmer is OFF for easy location in the dark.; Constant memory returns lights to previous level after a power failure.; Higher ratings.; Single pole and 3-way operation.; Works with standard 3-way switches and wiring.; Screw-pressure-plate backwire terminals save time, space and money.; Seven additional face cover colors available but sold separately (see HKIT*).; For covering patents, see www.legrand.us/patents. - Eco-Benefit Information: RoHS Compliant; LEED Contribution: Yes
