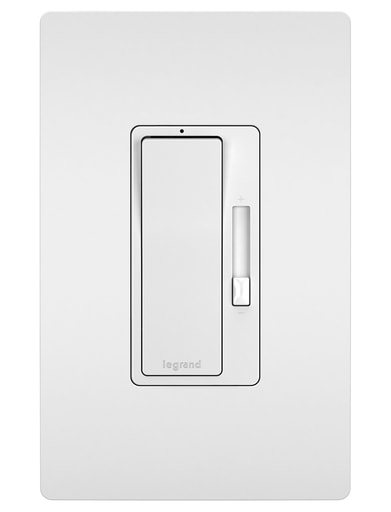

Pass & Seymour / Legrand - Pass & Seymour RH703PTUW Radiant Universal Single Pole/3-Way Dimmer, 700W 120V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007053296

  • Actuator - Paddle switch with Slider

  • Amperage - 15 Amp

  • Applications - For LED Retrofit Lighting Control, Residential Applications

  • Catalog Number - RH703PTUW

Packaging

  • 1 ea

EAN

00785007053296

Part #

222117

Catalog #

RH703-PTUW

Commercial reference

RH703-PTUW

12-Digit UPC:

785007053296

Actuator:

Paddle switch with Slider

Amperage:

15 Amp

Applications:

For LED Retrofit Lighting Control, Residential Applications

Catalog Number:

RH703PTUW

Color:

White

Country of Origin:

China

Depths:

1-1/4 Inch

ERP_productname:

PASS RH703-PTUW RADIANT TRU UNIVRS SP/3W 700W DIM, WH

Enclosure:

Thermoplastic

Family Brand Name:

Pass & Seymour

Finish:

Matte

Heights:

4-1/4 Inch

Material:

Thermoplastic

Mounting Type:

Box

Number of Gangs:

1 Gang

Number of Poles:

1 Pole

Sub Brand:

The Radiant®

Tc Connection:

Screw Terminals

Type:

3 Way, Paddle, Slide Handle, Tru-Universal, Phase Cut-Off

Voltage:

120 Volt

Wattage:

700 Watt

Widths:

1.75 in

SoneparProductId:

SKU_US_57773049

Upgrade your space with superior dimming control and exceptional style. The radiant® Tru-Universal Dimmer works with virtually any 120V dimmable bulb or fixture, adjusting to the precise light level you want, without the flicker. Unsure what dimmer your bulb needs? Avoid uncertainty with Tru-Universal Dimming. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Features: Works with virtually any 120V dimmable bulb or fixture on typical residential (and light commercial) wiring. Usable in both single-pole and 3-way applications.; Self-calibrates when you select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and poor performance.; Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.; Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.; Constant memory features returns lights to their previous level when turning back on or after a power outage.; No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.; Features durable, high-impact resistant thermoplastic construction.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection. - Certifications: UL Listed; cULus Listed
