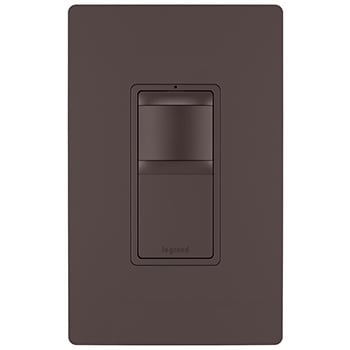

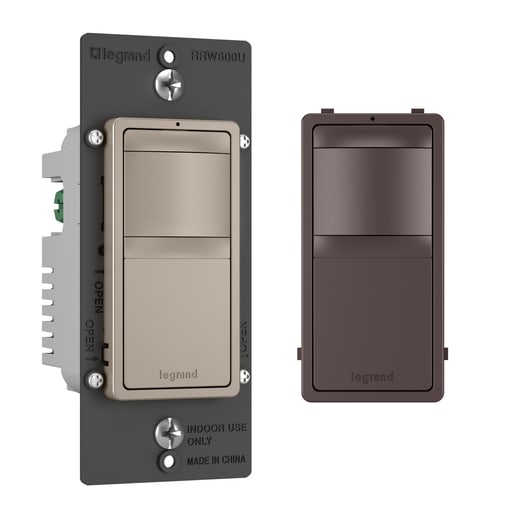

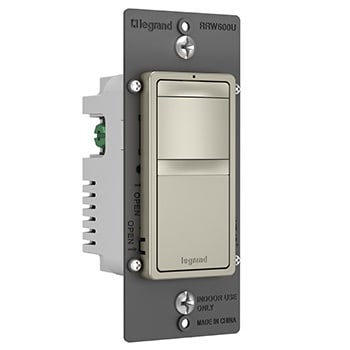

Pass & Seymour / Legrand - Pass & Seymour RRW600UBCCCV4 Single Pole/3-Way Occupancy Sensor, 120V - Bi-Color

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007158359

  • Amperage - 15 Amp

  • Catalog Number - RRW600UBCCCV4

  • Color - Bronze

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00785007158359

Part #

273799

Catalog #

RRW600UBCCCV4

Commercial reference

RRW600UBCCCV4

12-Digit UPC:

785007158359

Amperage:

15 Amp

Catalog Number:

RRW600UBCCCV4

Color:

Bronze

Country of Origin:

China

Depths:

1.88 Inch

ERP_productname:

PASS RRW600UBCCCV4 RADIANT OCC SENS 2-WIRE 600W, BI-COLOR

Family Brand Name:

Legrand

Finish:

Metallic

Heights:

2.63 Inch

Input Voltage:

120 VAC

Material:

Polycarbonate, Steel

Mounting Type:

Box

Number of Gangs:

1 Gang

Number of Poles:

3 Pole

Sensing Range:

Minor Motion 20 ft, Major Motion 35 ft

Sub Brand:

radiant

Type:

Switch

Voltage:

120 Volt

Widths:

1.69 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_89592708

120V Single Pole/3-Way Occupancy Sensor Features: Passive infrared (PIR) sensor switch technology with 180± coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.; Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.; Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.; Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.; Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).; Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.; Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.; Bi-color unit ships with popular radiant® Nickel and Dark Bronze metallic colors. - Certifications: UL Listed
