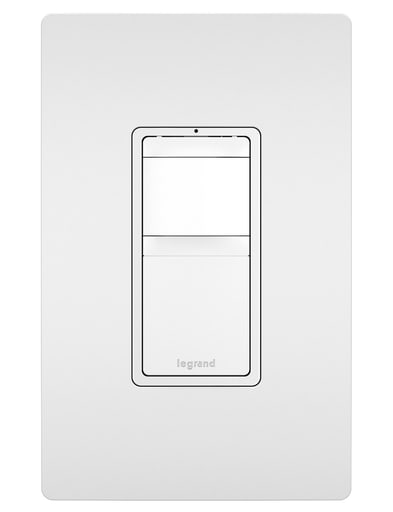

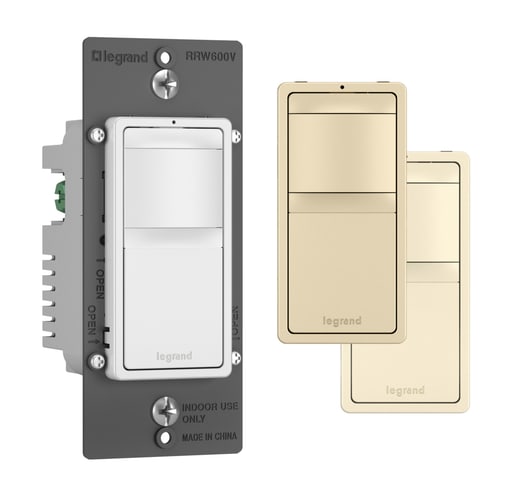

Pass & Seymour / Legrand - Pass & Seymour RRW600VTC Radiant 3-Wire Occupancy Sensor, 120V 600W - Tri-Color

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007496604

  • Amperage - 15 Amp

  • Applications - Residential

  • Catalog Number - RRW600VTC

  • Color - White

Packaging

  • 1 ea

EAN

00785007496604

Part #

106462

Catalog #

RRW600VTC

Commercial reference

RRW600VTC

12-Digit UPC:

785007496604

Amperage:

15 Amp

Applications:

Residential

Catalog Number:

RRW600VTC

Color:

White

Country of Origin:

China

Depths:

1.88 Inch

ERP_productname:

PASS RRW600VTC RADIANT VAC SENS 2-WIRE 600W, TRI-COLOR

Enclosure:

Polycarbonate

Family Brand Name:

Pass & Seymour

Finish:

Matte

Heights:

2.63 Inch

Material:

Polycarbonate

Mounting Type:

Wall

Number of Poles:

1 Pole

Sensing Range:

600 ft.

Sensor Type:

PIR

Sub Brand:

Pass & Seymour

Type:

Single Pole Vacancy Sensor

Voltage:

120 Volt

Wattage:

600 Watt

Widths:

1.69 in

SoneparProductId:

SKU_US_57773481

Never worry about leaving the lights on, with the radiant® Vacancy Sensor. It automatically shuts off when a room is empty, and includes an adjustable delay setting of up to 30 minutes to match your needs. Designed for ease and style, it features a built-in locator light, and the sleek, clean lines of radiant® for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Features: Passive infrared (PIR) sensor switch technology with 180± coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.; Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.; Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.; Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.; Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 20 minute delay).; Manual ON/Auto OFF functionality. Meets California Title 24 requirements for automatic off lighting control.; Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.; More color options available to fit any style, including finishes to match current hardware and lighting trends. - Certifications: UL Listed; cULus Listed
