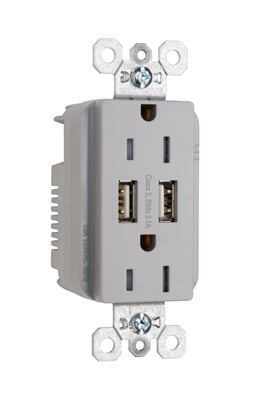

Pass & Seymour / Legrand - Pass & Seymour TR-5262USBGRY Fed Spec Grade USB Charger with Tamper Resistant Gray 15 Amp Duplex Receptacles

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007031638

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - TR5262USBGRY

  • Color - Gray

Packaging

  • 1 ea

EAN

00785007031638

Part #

148588

Catalog #

TR-5262USBGRY

Commercial reference

TR-5262USBGRY

12-Digit UPC:

785007031638

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

TR5262USBGRY

Color:

Gray

Conductor Size:

14-10 AWG

Country of Origin:

China

Depths:

1.392 Inch

ERP_productname:

PASS TR-5262USBGRY DUP REC 15A TR SPEC W/3.1A USB CHRG

Family Brand Name:

Legrand

Finish:

Matte

Heights:

2.677 Inch

Material:

Thermoplastic

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.392" (D) x 1.693" (W) x 3.281" (H)

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wired

Type:

Tamper-Resistant USB Duplex Receptacle

Voltage:

125 Volt

Widths:

1.693 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_58185765

Designed for commercial markets with strength and durability in mind, this combination duplex receptacle and two USB Type-A features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.; Auto-ground clip assures positive ground.; AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.; Multiple color options available.; Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.; Stainless steel auto-ground clips assure positive ground.; Wire Size: #14 - #10 AWG Copper Conductor Only - Certifications: cULus Listed; Federal Spec Listed; UL Listed
