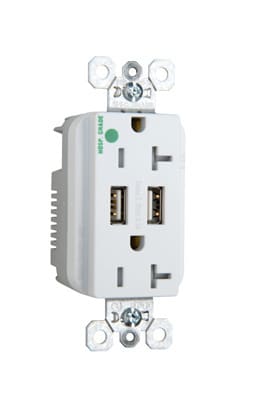

Pass & Seymour / Legrand - Pass & Seymour TR-8300HUSBW Hospital-Grade USB Charger with Tamper Resistant White 20 Amp Duplex Receptacles
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007031560
Amperage - 20 Amp
Catalog Number - TR8300HUSBW
Color - White
Conductor Size - 14-10 AWG
Packaging
1 ea
EAN
00785007031560
Part #
172608
Catalog #
TR-8300HUSBW
Commercial reference
TR-8300HUSBW
12-Digit UPC:
785007031560
Amperage:
20 Amp
Catalog Number:
TR8300HUSBW
Color:
White
Conductor Size:
14-10 AWG
Country of Origin:
Vietnam
Depths:
1.392 Inch
ERP_productname:
PASS TR-8300HUSBW DUP REC 20A TR HG W/3.1A USB CHRG
Family Brand Name:
Pass & Seymour
Finish:
Matte
Grade:
Hospital
Heights:
2.677 Inch
Material:
Nylon
NEMA:
5-20R
Number of Ports:
2
Sub Brand:
Pass & Seymour
Type:
Tamper-Resistant
Voltage:
125 VAC
Widths:
1.693 in
SoneparProductId:
SKU_US_58148154
Designed for the healthcare market and capable of withstanding heavy use due to its UL Hospital Grade certification. Features include an improved overall 3.1A USB charging capability, auto-ground clips, zinc-plated ground terminal screw, as well as triple-wipe brass contacts for lasting retention. The screw-pressure-plate back wiring makes installation fast and easy. Also available in black, green, gray, ivory, light almond, nickel, red and white.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices; AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.; Multiple color options available.; Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.; Stainless steel auto-ground clips assure positive ground. - Certifications: cULus Listed; Federal Spec Listed; UL Listed
