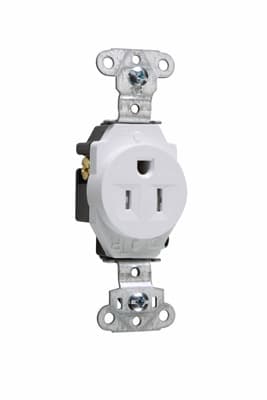

Pass & Seymour / Legrand - Pass & Seymour TR5251-W Tamper-Resistant Construction Spec Grade Single Receptacle Back & Side Wire 15Amp 125Volt White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007241938

  • Amperage - 15 Amp

  • Applications - Commercial Grade

  • Catalog Number - TR5251W

  • Color - White

Packaging

  • 1 ea

EAN

00785007241938

Part #

197188

Catalog #

TR5251-W

Commercial reference

TR5251-W

12-Digit UPC:

785007241938

Amperage:

15 Amp

Applications:

Commercial Grade

Catalog Number:

TR5251W

Color:

White

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1.19 Inch

ERP_productname:

PASS TR5251-W RECEP SGL TAMPER RESIS 15A/125V WH

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Specification

Heights:

3.28 Inch

Material:

Nylon

Mounting Type:

Wall

NEMA:

5-15R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.296 L x 1.190 W x 3.28 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Tamper-Resistant

Voltage:

125 Volt

Widths:

1.38 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26753585

Tamper-Resistant Construction Spec Grade Single Receptacle Back & Side Wire 15amp 125volt WhiteFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Certifications: cULus Listed - Features: Dual mechanical shutter system to help prevent insertions of foreign objects.; Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.; .032 inch thick brass triple-wipe power contacts for lasting retention.; Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.; Auto-ground clip assures positive ground.; Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact
