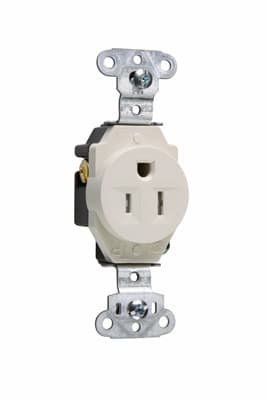

Pass & Seymour / Legrand - Pass & Seymour TR5251LA 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Nylon Face Tamper-Resistant Single Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007241983

  • Amperage - 15 Amp

  • Catalog Number - TR5251LA

  • Color - Light Almond

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785007241983

Part #

220021

Catalog #

TR5251LA

Commercial reference

TR5251LA

12-Digit UPC:

785007241983

Amperage:

15 Amp

Catalog Number:

TR5251LA

Color:

Light Almond

Country of Origin:

Mexico

Depths:

1.19 Inch

ERP_productname:

PASS TR5251LA RECEP SGL TAMPER RESIS 15A/125V LA

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

3.28 Inch

NEMA:

5-15R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Sub Brand:

Pass & Seymour

Type:

Tamper-Resistant

Voltage:

125 Volt

Widths:

1.38 in

SoneparProductId:

SKU_US_27209514

Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V Features: Dual mechanical shutter system to help prevent insertions of foreign objects.; Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.; .032 inch thick brass triple-wipe power contacts for lasting retention.; Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.; Auto-ground clip assures positive ground.; Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
