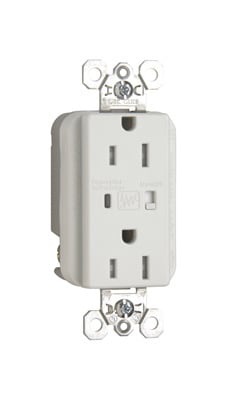

Pass & Seymour / Legrand - Pass & Seymour TR5262-Wsp Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007019261

  • Amperage - 15 Amp

  • Applications - For Residential, Commercial Use

  • Catalog Number - TR5262WSP

  • Class - IG

Packaging

  • 1 ea

EAN

00785007019261

Part #

306843

Catalog #

TR5262-WSP

Commercial reference

TR5262-WSP

12-Digit UPC:

785007019261

Amperage:

15 Amp

Applications:

For Residential, Commercial Use

Catalog Number:

TR5262WSP

Class:

IG

Color:

White

Country of Origin:

China

Depths:

1.4 Inch

ERP_productname:

PASS TR5262-WSP SPD RECP TR 15A/125V ALARM WH

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

2-3/4 Inch

Material:

Thermoplastic

Mounting Type:

Box

NEMA:

5-15R

Number of Phases:

1 Phase

Size:

1-3/4 in W x 0.94 in D x 3.82 in H

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wire

Type:

Tamper-Resistant, Extra Heavy Duty

Voltage:

125 Volt

Widths:

1.7 in

SoneparProductId:

SKU_US_58176523

Tamper-Resistant Extra Heavy-Duty Surge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 15amp 125volt, White.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: Dual mechanical shutter system to help prevent insertion of foreign objects.; Auto-ground clip assures positive ground.; Backed-out tri-drive brass terminal screws for faster installation.; Internal screw-pressure-plate back and side wire capability.; Two back wire holes for additional wiring flexibility.; Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.; .032 inch thick brass triple-wipe power contacts.; Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.; For covering patents, see www.legrand.us/patents. - Certifications: cULus Listed
