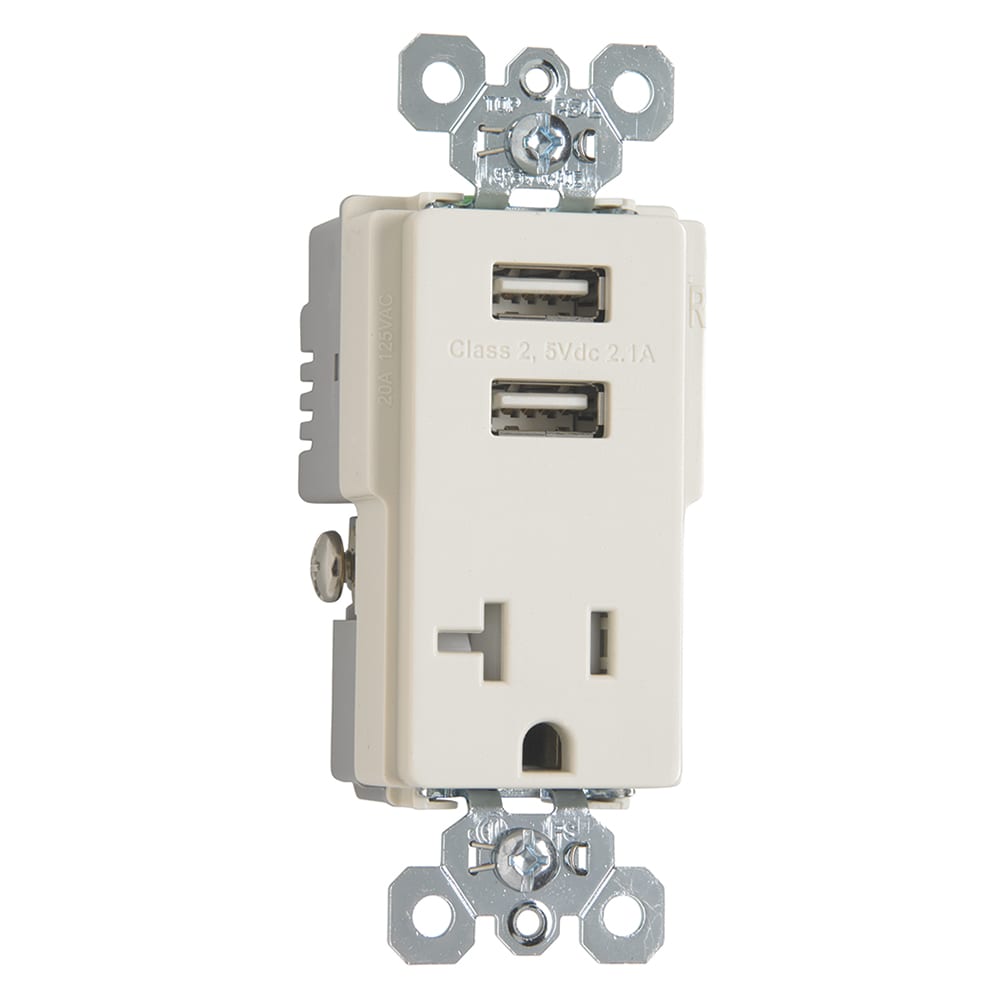

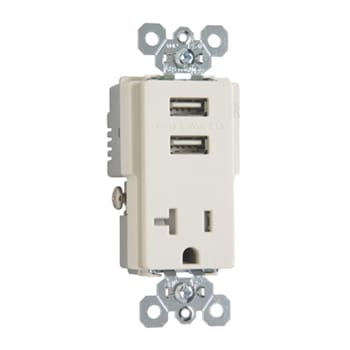

Pass & Seymour / Legrand - Pass & Seymour TR5361USB-LA 20 Amp 125 VAC 2-Pole 3-Wire Light Almond Decorator USB Charger Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007028997

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - TR5361USB-LA

  • Color - Light Almond

Packaging

  • 1 ea

EAN

00785007028997

Part #

200266

Catalog #

TR5361USB-LA

Commercial reference

TR5361USB-LA

12-Digit UPC:

785007028997

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

TR5361USB-LA

Color:

Light Almond

Conductor Size:

14-10 AWG

Country of Origin:

China

Depths:

1.31 Inch

ERP_productname:

PASS TR5361USB-LA 20A TR SPEC GRD W/2.1A USB CHRG LA

Family Brand Name:

Pass & Seymour

Heights:

4.18 Inch

Material:

Thermoplastic

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.31" (D) x 1.60" (W) x 4.18" (H)

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wired

Type:

Tamper-Resistant USB Single Receptacle

Voltage:

125 Volt

Widths:

1.60 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_26819119

Designed for commercial markets with strength and durability in mind, this combination USB charger receptacle features 2.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Eco-Benefit Information: RoHS Compliant - Features: 2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters.; Compact Design Tamper-Resistant receptacle and two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.; Back and side wire terminals accommodates #14 AWG - #10 AWG stranded and solid wire.; Tamper-Resistant, patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical Code® Tamper-Resistant requirements.; Stainless steel auto-ground clip assures positive ground.; Zinc-plated ground terminal screw; For covering patents, see www.legrand.us/patents.
