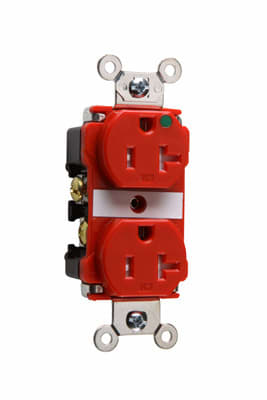

Pass & Seymour / Legrand - Pass & Seymour TR63-HRED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Nylon Tamper-Resistant Duplex Receptacle

Tamper-Resistant Hospital Grade Receptacles, Back and Side Wire, 20A, 125V Certifications: cULus Listed; Federal Spec Listed - Features: Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.; AC receptacles available in 15 and 20 Amp, 125V; Extra heavy-duty brass, one-piece mounting strap with integral ground.; One-piece, nickel-plated: brass, triple-wipe power contacts for lasting retention.; Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.; Impact-resistant nylon face and back body.; Two drive screws anchor strap to back body and face.; Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.; External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact
