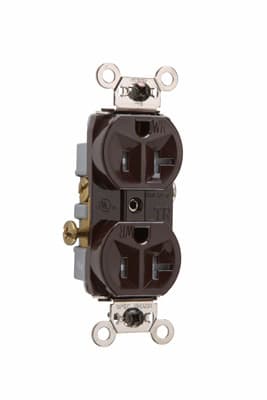

Pass & Seymour / Legrand - Pass & Seymour WR20-TR Brown Weather Resistant Commercial Grade Receptacles

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007242553

  • Amperage - 20 Amp

  • Applications - Commercial

  • Catalog Number - WR20TR

  • Color - Brown

Packaging

  • 1 ea

EAN

00785007242553

Part #

176084

Catalog #

WR20-TR

Commercial reference

WR20-TR

12-Digit UPC:

785007242553

Amperage:

20 Amp

Applications:

Commercial

Catalog Number:

WR20TR

Color:

Brown

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS WR20-TR WR DUP RECP TAMP RES 20A/125V BR

Family Brand Name:

Legrand

Grade:

Commercial

Heights:

2.635 Inch

Material:

Nylon

NEMA:

5-20R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.322 L x 1.130 W x 3.281 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Side wire

Type:

Receptacles

Voltage:

125 Volt

Widths:

1.322 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_26405198

Weather-Resistant Commercial Grade Receptacles, 20 amp, 125 volts, Ivory, WR20TRI Features: Auto-ground clip assures positive ground.; Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.; Strap tabs wrap around face to prevent strap from separating from face and back body.; Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.; Heavy-duty, brass strap for added strength and ground conductivity.; Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; .032 inch thick brass triple-wipe power contacts for lasting retention.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50±C, minimum -40±C without impact - Certifications: cULus Listed
