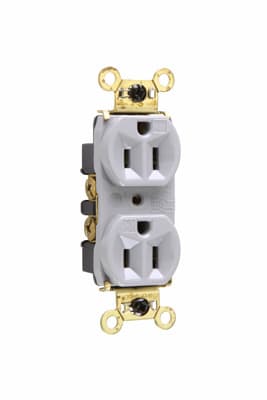

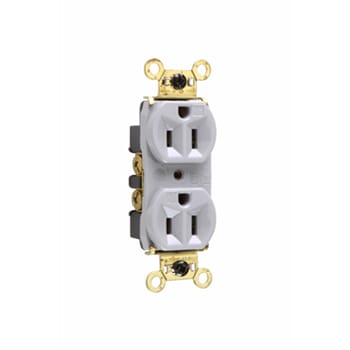

Pass & Seymour / Legrand - Pass & Seymour WR5262-GRY Gray Weather Resistant Commercial Grade Receptacles

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007242522

  • Amperage - 15 Amp

  • Applications - Commercial

  • Buy American - Y

  • Catalog Number - WR5262GRY

Packaging

  • 1 ea

EAN

00785007242522

Part #

176094

Catalog #

WR5262-GRY

Commercial reference

WR5262-GRY

12-Digit UPC:

785007242522

Amperage:

15 Amp

Applications:

Commercial

Buy American:

Y

Catalog Number:

WR5262GRY

Color:

Gray

Conductor Size:

14-10 AWG

Country of Origin:

USA

Depths:

0.78 Inch

ERP_productname:

PASS WR5262-GRY WR DUP RECP B+S WIRE 15A/125V GRY

Family Brand Name:

Legrand

Grade:

Federal Specification

Heights:

3.281 Inch

Material:

Thermoplastic

NEMA:

5-15R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

5.13x2.10x1.43

Sub Brand:

Pass & Seymour

Type:

Receptacles

Voltage:

125 Volt

Widths:

1.322 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_27213916

Weather-Resistant Heavy-Duty Spec Grade Duplex Receptacle Back and Side-Wire 15A 125V Features: Auto-ground clip assures positive ground.; WR marking on face as required by UL Standard.; Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.; Strap tabs wrap around face to prevent strap from separating from face and back body.; Tri-drive brass terminal screws.; Internal screw-pressure-plate back and side wire capability.; Two back wire holes for more wiring flexibility.; Heavy-duty, brass strap for added strength and ground conductivity.; UV-resistant nylon face for longer life under adverse environmental conditions.; Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.; Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.; .032 inch thick brass triple-wipe power contacts for lasting retention.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Eco-Benefit Information: RoHS Compliant
