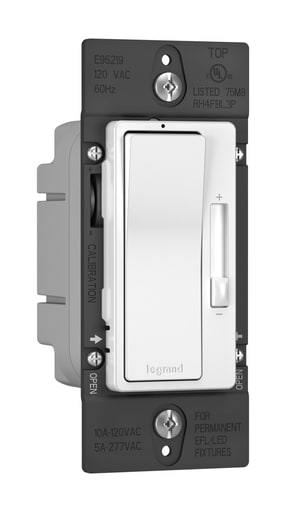

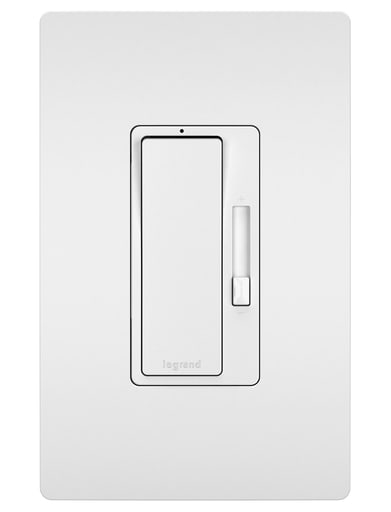

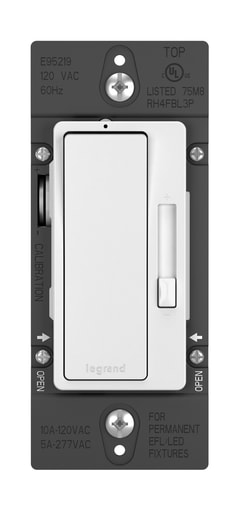

Pass & Seymour / Legrand - P&S RH4FBL3PW RADIANT 0-10V FL/LED

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007053326

  • Amperage - 15 Amp

  • Applications - For 0 - 10 V LED or Fluorescent Lighting Control, Residential Applications

  • Catalog Number - RH4FBL3PW

  • Color - White

Packaging

  • 1 ea

EAN

00785007053326

Part #

108310

Catalog #

RH4FBL3-PW

Commercial reference

RH4FBL3-PW

12-Digit UPC:

785007053326

Amperage:

15 Amp

Applications:

For 0 - 10 V LED or Fluorescent Lighting Control, Residential Applications

Catalog Number:

RH4FBL3PW

Color:

White

Country of Origin:

China

Depths:

1-1/4 Inch

ERP_productname:

PASS RH4FBL3-PW RADIANT 0-10V FL/LED DIMMER, WH

Enclosure:

Thermoplastic

Family Brand Name:

Pass & Seymour

Finish:

Matte

Heights:

4-1/4 Inch

Material:

Thermoplastic

Mounting Type:

Box

Number of Gangs:

1 Gang

Number of Poles:

1 Pole

Sub Brand:

The Radiant®

Tc Connection:

Screw Terminals

Type:

3 Way, Slide Handle, Paddle, Push Button, Multi-Location

Widths:

1.75 in

SoneparProductId:

SKU_US_427350831

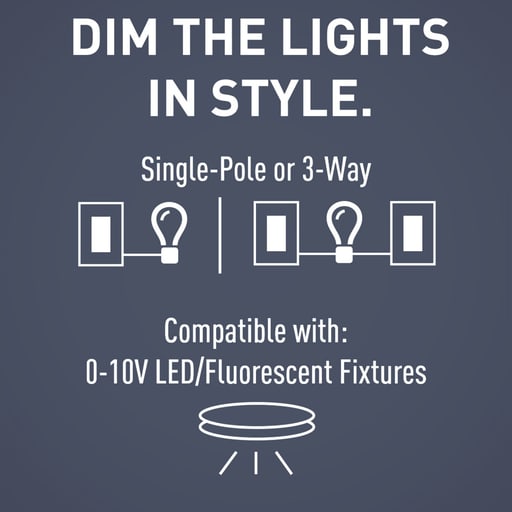

Upgrade your space with precise dimming control and exceptional style. The radiant® 0-10V Dimmer works with low-voltage fluorescent and LED fixtures, allowing you to set the perfect light level for your space with efficiency and ease. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Features: Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. For use with 0-10V, 4-wire, 120V 10A/277V 5A LED and fluorescent lighting.; Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.; Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.; Constant memory features returns lights to their previous level after a power failure or outage.; No derating* required for 2-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.; Features durable, high-impact resistant thermoplastic construction.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection. - Certifications: UL Listed; cULus Listed
