Phoenix Blocks - PHNX 0311087 URTK/S
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180012926
Amperage - 41 Amp
Catalog Number - 0311087
Color - Gray
Conductor Size - 20-8 AWG
Packaging
50 ea
EAN
Part #
210654
Catalog #
0311087
Commercial reference
0311087
12-Digit UPC:
179180012926
Amperage:
41 Amp
Catalog Number:
0311087
Color:
Gray
Conductor Size:
20-8 AWG
ERP_productname:
PHNX 0311087 URTK/S
Family Brand Name:
Phoenix
Length:
72 mm
Mounting Type:
NS 35/7.5, NS 35/15, NS 32 DIN Rail
Number of Poles:
2 Pole
Torque Rating:
1.2 - 1.5 N-m
Type:
1-Level, Disconnect
Voltage:
400 Volt Nominal, 6 kV Surge
Widths:
8.2 mm
SoneparProductId:
SKU_US_73199668

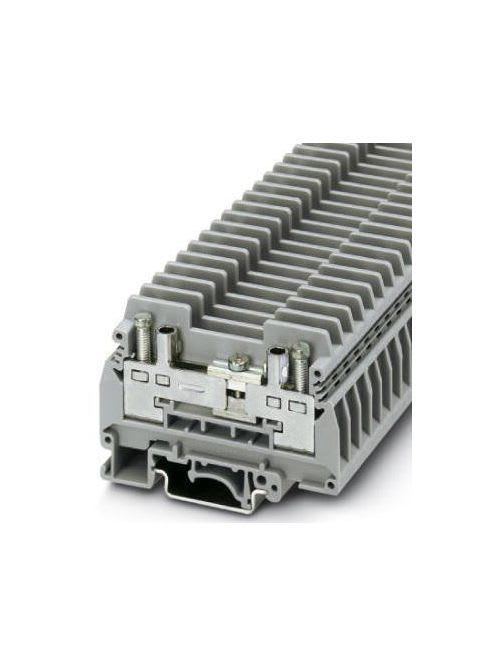

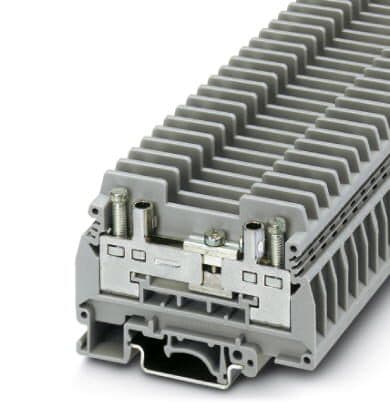

Test disconnect terminal block, with two test sockets for 4 mm test plugs, or for receiving bridge bars or screw bridges, connection method: Screw connection, cross section: 0.5 mm. - 10 mm. , AWG: 20 - 10, width: 8.2 mm, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: Easy and clear testing in current transformer secondary circuits can be performed using the test disconnect terminal blocks of the URTK/S range; On both sides of the disconnect point, the terminal block has a test socket which can also be used to switch across to neighboring terminal blocks - Approvals: cULus Recognized; EAC; LR; IECEE CB Scheme; KEMA-KEUR; RS; CSA; UL Recognized; cUL Recognized
