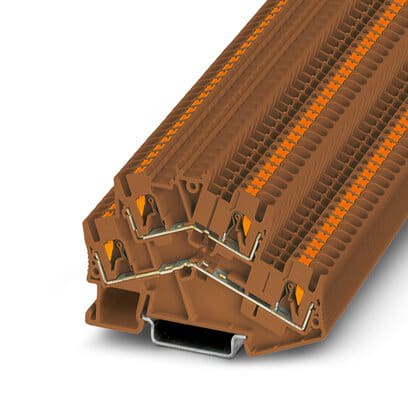

Phoenix Blocks - PHNX 1037088 PTTBS 2 5 BN

Double-level terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: brown Features: In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The compact design and front connection enable wiring in a confined space - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC; LR; IECEx; NK; ATEX; IECEE CB Scheme; DNV GL; RS; CSA; UL Recognized; cUL Recognized; ABS
