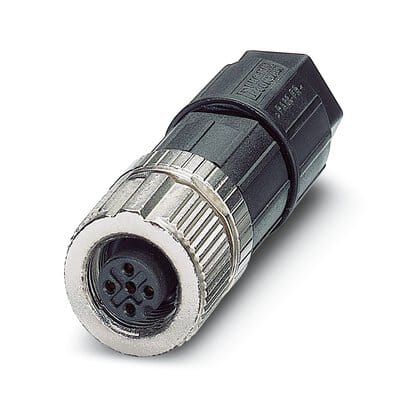

Phoenix Blocks - PHNX 1424655 SACC-M12FS-4PL M
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 055626375829
Amperage - 4 Amp
Catalog Number - 1424655
Country of Origin - Germany
ERP_productname - PHNX 1424655 SACC-M12FS-4PL M
Packaging
1 ea
EAN
Part #
199072
Catalog #
1424655
Commercial reference
1424655
12-Digit UPC:
055626375829
Amperage:
4 Amp
Catalog Number:
1424655
Country of Origin:
Germany
ERP_productname:
PHNX 1424655 SACC-M12FS-4PL M
Family Brand Name:
Phoenix
Length:
58 mm
Type:
Straight, Socket, Universal, Unshielded
Voltage:
250 VAC/VDC
SoneparProductId:
SKU_US_193090885
Connector, Universal, 4-position, unshielded, Socket straight M12, A-coded, Push-lock spring connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm Features: Easy and tool-free connection by means of Push-in Technology; Conveniently connect stranded conductors, thanks to lever; Reliable and quick connection of electric cables; Flexible signal and data cabling - Approvals: cULus Listed; EAC; UL Listed; cUL Listed
