Phoenix Blocks - PHNX 1523434 SACC-E-FS-4CON-M16/0 5 SCO

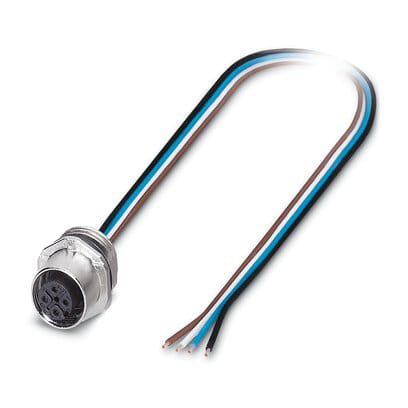

Device connector front mounting, Universal, 4-position, Flush-type female connector, straight, M12-SPEEDCON, A, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.34 mm., TPE litz wire Features: Pre-assembled with litz wires for immediate use; Customer-specific assemblies and litz wire lengths available; Sealed on the litz wire side for optimum leak-tightness; All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design; For high transmission safety: shield connection to the housing with optional EMC nut; SPEEDCON fast locking system reduces cabling times; WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.; WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.; WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.; The products are suitable for applications in plant, controller, and electrical device engineering.; When operating the connectors in outdoor applications, they must be separately protected against environmental influences.; Assembled products may not be manipulated or improperly opened.; Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).; When using the product in direct connection with third-party manufacturers, the user is responsible.; For operating voltages > 50 V AC, conductive connector housings must be grounded; Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.; Observe the corresponding technical data. You will find information:.On the product.On the packing label.In the supplied documentation.; Only use tools recommended by Phoenix Contact; Use a protective cap to protect connectors that are not in use. ; Ensure that the protective or functional ground has been properly connected.; VDE 0100/1.97 . 411.1.3.2 and DIN EN 60 204/11.98 . 14.1.3 are applicable when combining several circuits in a cable and/or connector; The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). - Approvals: EAC; UL Recognized; cULus Recognized
