Phoenix Blocks - PHNX 1663116 SACC-M12MS-5CON-PG 7-M
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918116583
Amperage - 4 Amp
Catalog Number - 1663116
Country of Origin - Germany
ERP_productname - PHNX 1663116 SACC-M12MS-5CON-PG 7-M
Packaging
1 ea
EAN
Part #
107631
Catalog #
1663116
Commercial reference
1663116
12-Digit UPC:
017918116583
Amperage:
4 Amp
Catalog Number:
1663116
Country of Origin:
Germany
ERP_productname:
PHNX 1663116 SACC-M12MS-5CON-PG 7-M
Family Brand Name:
Phoenix
Finish:
Plated
Length:
60 mm
Material:
Copper Zinc/Die-Cast Zinc/Polyamide
Size:
20 mm dia x 60 mm L
Tc Connection:
Screw Terminal
Type:
5-Position, Straight, Universal
Voltage:
48 VAC, 60 VDC
SoneparProductId:
SKU_US_72406617

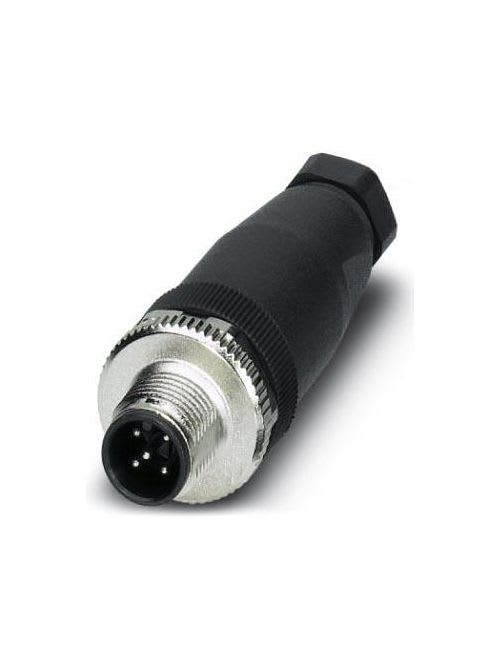

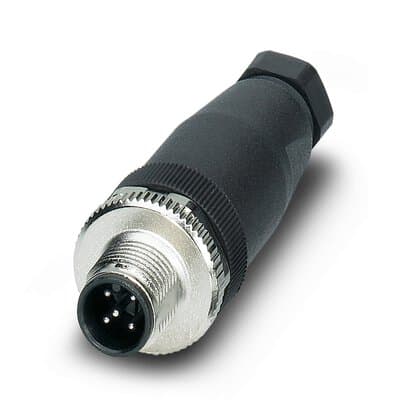

Connector, Universal, 5-position, Plug straight M12, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg7, external cable diameter 4 mm ... 6 mm Features: Safe use in the field, thanks to a high degree of protection; Flexible: connectors for on-site assembly; Screw connection: proven connection technology for a large selection of different conductors - Approvals: cULus Recognized; UL Recognized; cUL Recognized
