Phoenix Blocks - PHNX 1681460 SACC-M12MS-5CON-PG9-M
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181574324
Amperage - 4 Amp
Catalog Number - 1681460
Country of Origin - Germany
ERP_productname - PHNX 1681460 SACC-M12MS-5CON-PG9-M
Packaging
1 ea
EAN
Part #
215168
Catalog #
1681460
Commercial reference
1681460
12-Digit UPC:
179181574324
Amperage:
4 Amp
Catalog Number:
1681460
Country of Origin:
Germany
ERP_productname:
PHNX 1681460 SACC-M12MS-5CON-PG9-M
Family Brand Name:
Phoenix
Length:
60 mm
Type:
Plug, Straight, Universal
Voltage:
48 VAC, 60 VDC
SoneparProductId:
SKU_US_73081968

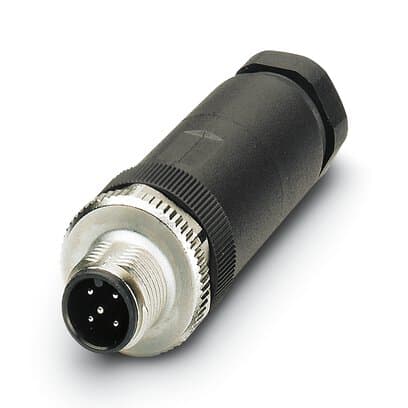

Connector, Universal, 5-position, Plug straight M12, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm Features: Safe use in the field, thanks to a high degree of protection; Flexible: connectors for on-site assembly; Screw connection: proven connection technology for a large selection of different conductors - Approvals: cULus Recognized; UL Recognized; cUL Recognized
