Phoenix Blocks - PHNX 1777361 FRONT-MSTB 2 5/10-ST-5 08

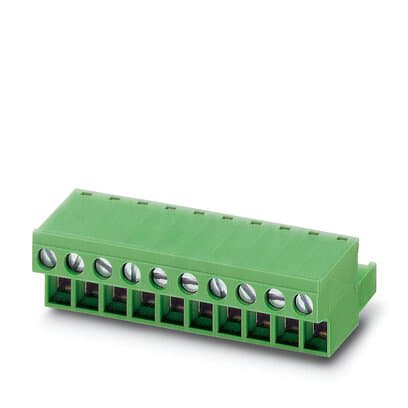

PCB connector, nominal cross section: 2.5 mm., color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: FRONT-MSTB 2,5/..-ST, pitch: 5.08 mm, connection method: Front screw connection, screw head form: L Slotted, conductor/PCB connection direction: 0 ., locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Features: Well-known connection principle allows worldwide use; Optimized for tight installation situations: operation and conductor connection from one direction; Low temperature rise, thanks to maximum contact force; Allows connection of two conductors - Approvals: VDE Zeichengenehmigung; EAC; IECEE CB Scheme; CSA; cULus Recognized
