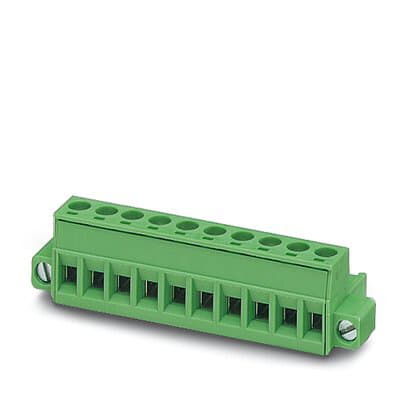

Phoenix Blocks - PHNX 1778166 MSTB 2 5/20-STF-5 08
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918040036
Catalog Number - 1778166
Color - Green
Country of Origin - Germany
Current - 12 Amp
Packaging
50 ea
EAN
Part #
209079
Catalog #
1778166
Commercial reference
1778166
12-Digit UPC:
017918040036
Catalog Number:
1778166
Color:
Green
Country of Origin:
Germany
Current:
12 Amp
ERP_productname:
PHNX 1778166 MSTB 2 5/20-STF-5 08
Family Brand Name:
Phoenix Contact
Heights:
15 mm
Length:
18.3 mm
Mounting Type:
Screw Flange
Number of Positions:
20
Widths:
111.61 mm
SoneparProductId:
SKU_US_315792180
PCB connector, nominal cross section: 2.5 mm., color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 20, number of rows: 1, number of positions: 20, number of connections: 20, product range: MSTB 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 ., locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Features: Well-known connection principle allows worldwide use; Low temperature rise, thanks to maximum contact force; Screwable flange for superior mechanical stability; Allows connection of two conductors - Approvals: VDE Zeichengenehmigung; EAC; DNV GL; IECEE CB Scheme; RS; CSA; cULus Recognized
