Phoenix Blocks - PHNX 1803659 MC 1 5/10-ST-3 81
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918045964
Catalog Number - 1803659
Color - Green
Country of Origin - Germany
ERP_productname - PHNX 1803659 MC 1 5/10-ST-3 81
Packaging
50 ea
EAN
Part #
214834
Catalog #
1803659
Commercial reference
1803659
12-Digit UPC:
017918045964
Catalog Number:
1803659
Color:
Green
Country of Origin:
Germany
ERP_productname:
PHNX 1803659 MC 1 5/10-ST-3 81
Family Brand Name:
Phoenix Products
Heights:
11.1 mm
Length:
16.1 mm
Number of Positions:
10
Widths:
38.89 mm
SoneparProductId:
SKU_US_73732093

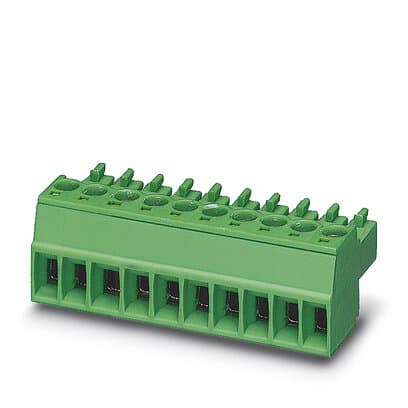

PCB connector, nominal cross section: 1.5 mm., color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: MC 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 ., number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard Features: Well-known connection principle allows worldwide use; Low temperature rise, thanks to maximum contact force; Allows connection of two conductors - Approvals: VDE Gutachten mit Fertigungs.berwachung; EAC; IECEE CB Scheme; CSA; cULus Recognized
