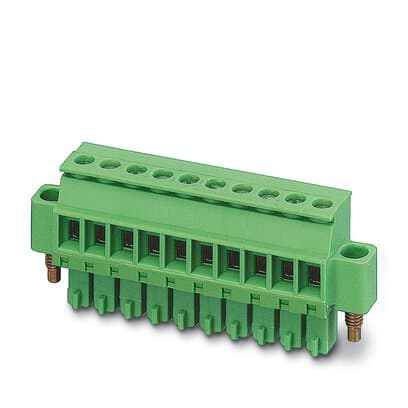

Phoenix Blocks - PHNX 1828401 MCVR 1 5/ 8-STF-3 81
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181147184
Catalog Number - 1828401
Color - Green
Country of Origin - Germany
ERP_productname - PHNX 1828401 MCVR 1 5/ 8-STF-3 81
Packaging
50 ea
EAN
Part #
177306
Catalog #
1828401
Commercial reference
1828401
12-Digit UPC:
179181147184
Catalog Number:
1828401
Color:
Green
Country of Origin:
Germany
ERP_productname:
PHNX 1828401 MCVR 1 5/ 8-STF-3 81
Family Brand Name:
Phoenix Products
Heights:
19.1 mm
Length:
10.4 mm
Mounting Type:
Screw Flange
Number of Positions:
8
Widths:
40.87 mm
SoneparProductId:
SKU_US_73428385
PCB connector, nominal cross section: 1.5 mm., color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MCVR 1,5/..-STF, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 90 ., number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Features: Well-known connection principle allows worldwide use; Low temperature rise, thanks to maximum contact force; Allows connection of two conductors; Screwable flange for superior mechanical stability - Approvals: VDE Gutachten mit Fertigungs.berwachung; EAC; IECEE CB Scheme; CSA; cULus Recognized
