Phoenix Blocks - PHNX 1832976 MCVK 1 5/12-GF-3 81

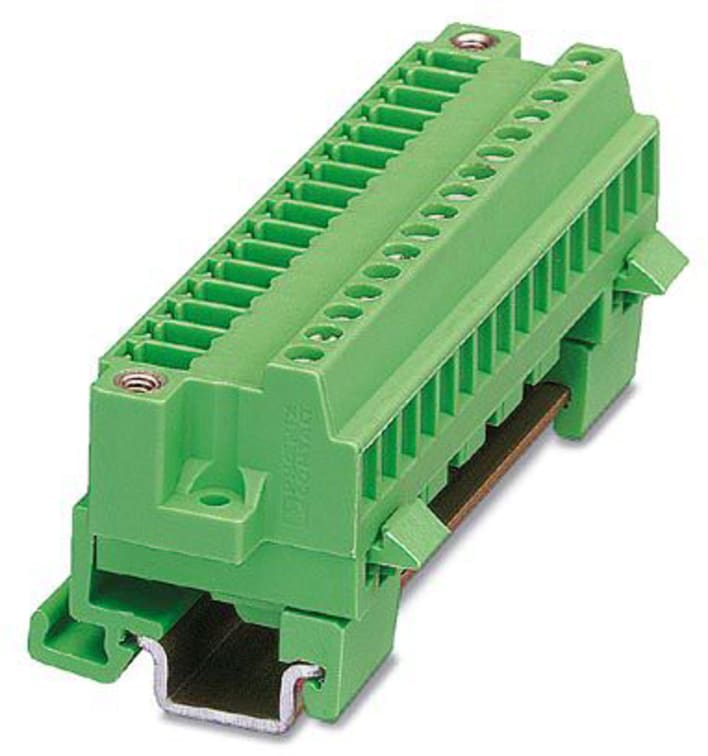

DIN rail connector, nominal cross section: 1.5 mm., color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: MCVK 1,5/..-GF, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, mounting: DIN rail, conductor/PCB connection direction: 0 ., plug-in system: COMBICON MC 1,5, locking: Screw locking, mounting: Threaded flange, type of packaging: packed in cardboard Features: Screwable flange for superior mechanical stability; Maximum flexibility when it comes to device design . one header for connectors with different connection technologies; For mounting on a DIN rail NS 15; Well-known connection principle allows worldwide use - Approvals: EAC; cULus Recognized
