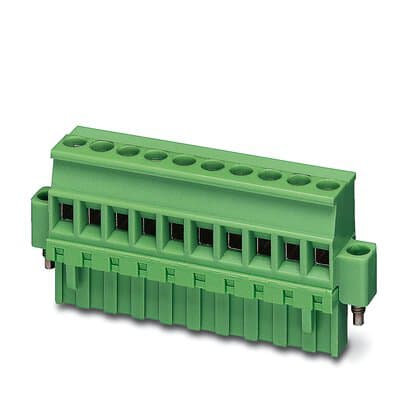

Phoenix Blocks - PHNX 1835232 MVSTBR 2 5/16-STF-5 08
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918121642
Catalog Number - 1835232
Color - Green
Country of Origin - Germany
Current - 12 Amp
Packaging
50 ea
EAN
Part #
210620
Catalog #
1835232
Commercial reference
1835232
12-Digit UPC:
017918121642
Catalog Number:
1835232
Color:
Green
Country of Origin:
Germany
Current:
12 Amp
ERP_productname:
PHNX 1835232 MVSTBR 2 5/16-STF-5 08
Family Brand Name:
Phoenix Contact
Heights:
26 mm
Length:
12.6 mm
Mounting Type:
Screw Flange
Number of Positions:
16
Widths:
91.44 mm
SoneparProductId:
SKU_US_315796040
PCB connector, nominal cross section: 2.5 mm., color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: MVSTBR 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 90 ., locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Features: Well-known connection principle allows worldwide use; Screwable flange for superior mechanical stability; Low temperature rise, thanks to maximum contact force; Allows connection of two conductors - Approvals: VDE Zeichengenehmigung; EAC; IECEE CB Scheme; CSA; cULus Recognized
