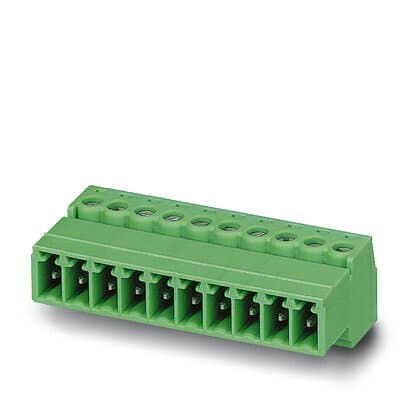

Phoenix Blocks - PHNX 1857964 IMC 1 5/10-ST-3 81

PCB connector, nominal cross section: 1.5 mm., color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: IMC 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 ., number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard Features: Well-known connection principle allows worldwide use; Low temperature rise, thanks to maximum contact force; Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections; Allows connection of two conductors - Approvals: VDE Gutachten mit Fertigungs.berwachung; EAC; IECEE CB Scheme; cULus Recognized
