Phoenix Blocks - PHNX 1933286 PST 1 3/12-5 0

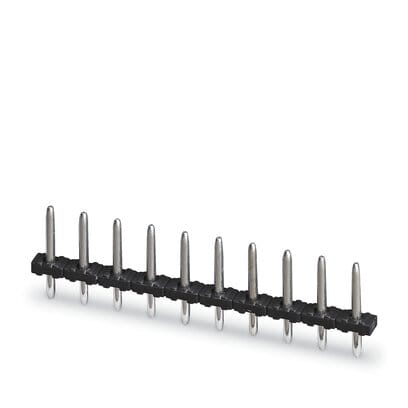

Pin strip, nominal cross section: 1.5 mm., color: black, nominal current: 12 A (depends on the plug used), rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: PST 1,3/..-V, pitch: 5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, plug-in system: COMBICON PST 1,3, locking: without, mounting: without, type of packaging: packed in cardboard, The maximum current depends on the plug used. The lower of the two current values apply for plug and pin strip. The pin strip is made of highly temperature resistant plastic and is thus suitable for the reflow process. Features: Suitable for wave and reflow soldering processes; Optimum pin geometry for all COMBICON pin strip connectors - Approvals: VDE Gutachten mit Fertigungs.berwachung; EAC; SEV; IECEE CB Scheme; cULus Recognized
