Phoenix Blocks - PHNX 1991176 SPT 2 5/10-V-5 0

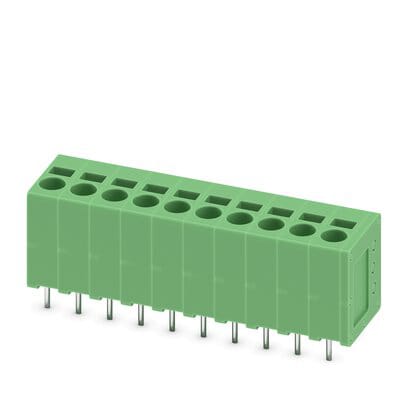

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm., number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: SPT 2,5/..-V, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 ., color: green, Pin layout: Linear double pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard Features: Time saving push-in connection, tools not required; Defined contact force ensures that contact remains stable over the long term; Clamping space opened by means of fixed screwdriver enables convenient conductor connection; Operation and conductor connection from one direction enable integration into front of device; Two solder pins reduce the mechanical strain on the soldering spots - Approvals: EAC; SEV; IECEE CB Scheme; cULus Recognized
