Phoenix Blocks - PHNX 2297057 ELR W3- 24DC/500AC-9I
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356170583
Catalog Number - 2297057
Country of Origin - Germany
Depths - 114 mm
ERP_productname - PHNX 2297057 ELR W3- 24DC/500AC-9I
Packaging
1 ea
EAN
Part #
213798
Catalog #
2297057
Commercial reference
2297057
12-Digit UPC:
046356170583
Catalog Number:
2297057
Country of Origin:
Germany
Depths:
114 mm
ERP_productname:
PHNX 2297057 ELR W3- 24DC/500AC-9I
Family Brand Name:
Phoenix Contact
Heights:
107 mm
Widths:
22.5 mm
SoneparProductId:
SKU_US_193265126

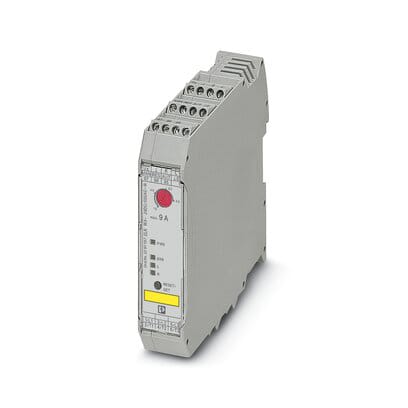

"4 in 1" three-phase semiconductor reversing contactor with 24 V DC input, 9 A output current, emergency stop function, and adjustable overload switching. Features: 22.5 mm wide; Safety level according to IEC 61508-1: SIL 3, ISO 13849: PL e; Reduction in wiring; Long service life; Space saving; 3-phase loop bridges; Adjustable current for bimetal function; Low-wear switching - Approvals: GL-SW; CCC; EAC; IECEE CB Scheme; GL; ATEX; UL Listed; cUL Listed
