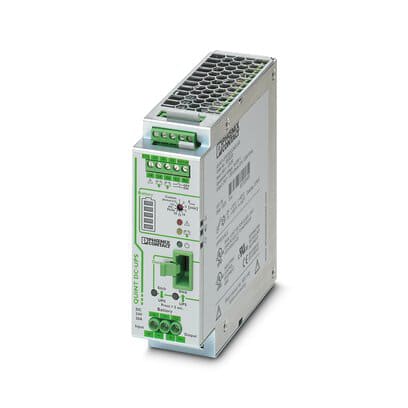

Phoenix Blocks - PHNX 2320238 QUINT-UPS/ 24DC/ 24DC/20 **TARIFF FEE APPLIES**

Uninterruptible power supply with IQ technology for DIN rail mounting, input: 24 V DC, output: 24 V DC/20 A, including mounted universal DIN rail adapter UTA 107/30 Features: Easy handling thanks to automatic battery detection, tool-free battery replacement during operation, and communication via the IFS interface; Optimum use of the buffer time and preventive monitoring of the energy storage; Rapid battery charging; Comprehensive signaling and parameterization; Fast tripping of standard circuit breakers with SFB (selective fuse breaking) technology; Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently - Approvals: BV; cULus Listed; EAC; cULus Recognized; LR; PRS; DNV GL; ABS; UL Listed; cUL Listed; UL Recognized; cUL Recognized
