Phoenix Blocks - PHNX 2320393 QUINT-BUFFER/24DC/24DC/ **TARIFF FEE APPLIES**
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 032886091827
Catalog Number - 2320393
Country of Origin - China
Depths - 125 mm
ERP_productname - PHNX 2320393 QUINT-BUFFER/24DC/24DC/ **TARIFF FEE APPLIES**
Packaging
1 ea
EAN
Part #
219399
Catalog #
2320393
Commercial reference
2320393
12-Digit UPC:
032886091827
Catalog Number:
2320393
Country of Origin:
China
Depths:
125 mm
ERP_productname:
PHNX 2320393 QUINT-BUFFER/24DC/24DC/ **TARIFF FEE APPLIES**
Family Brand Name:
Phoenix Products
Heights:
130 mm
Output Voltage:
24 V
Voltage:
10 Volt
Widths:
64 mm
SoneparProductId:
SKU_US_72439929

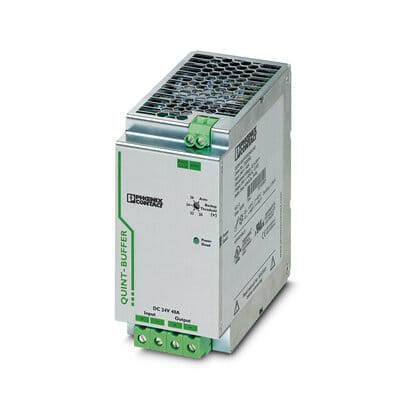

QUINT buffer module with maintenance-free capacitor-based energy storage for DIN rail mounting, decoupled input: 24 V DC, decoupled output: 24 V DC/40 A, with integrated SFB (Selective Fuse Breaking) Technology, including mounted UTA 107 universal DIN rail adapter Features: Longer buffer time, thanks to integrated decoupling function; Robust, thanks to reliable supply at temperatures from -25±C to +80±C; Saves space: electronic switchover unit and energy storage in the same housing; Flexible - supports operation in auto mode as well as manual adjustment - Approvals: BV; cULus Listed; EAC; cULus Recognized; LR; DNV GL; ABS; UL Listed; cUL Listed; UL Recognized; cUL Recognized
