Phoenix Blocks - PHNX 2320827 QUINT-PS/3AC/48DC/20
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463565477340
Catalog Number - 2320827
Country of Origin - Thailand
Depths - 179 mm
ERP_productname - PHNX 2320827 QUINT-PS/3AC/48DC/20
Packaging
1 ea
EAN
Part #
191188
Catalog #
2320827
Commercial reference
2320827
12-Digit UPC:
463565477340
Catalog Number:
2320827
Country of Origin:
Thailand
Depths:
179 mm
ERP_productname:
PHNX 2320827 QUINT-PS/3AC/48DC/20
Family Brand Name:
Phoenix Products
Heights:
130 mm
Output Voltage:
48 V
Voltage:
10 Volt
Widths:
96 mm
SoneparProductId:
SKU_US_73386012

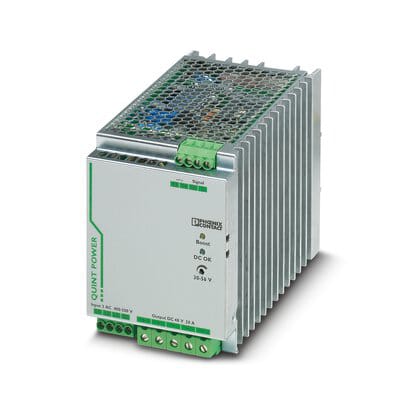

Primary-switched power supply unit, QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 48 V DC / 20 A Features: Adjustable output voltage of 30 to 56 V DC; Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently; Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms; Preventive function monitoring indicates critical operating states before errors occur - Approvals: cULus Listed; EAC; cULus Recognized; Type approved; IECEE CB Scheme; CSA; UL Listed; cUL Listed; UL Recognized; cUL Recognized
